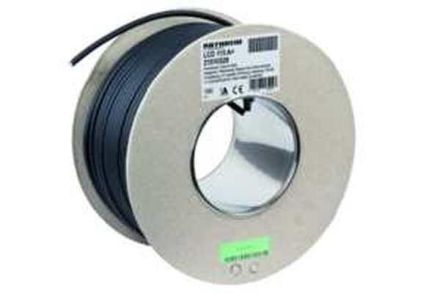

Kathrein LCD115A+ coaxial cable, black, 100m disposable coil

In stock

SKU: 168328

Price on request

€1.67

€0

Overview

Coaxial cable, BauPVO EN 50575, Cca s1a d1 a1, 100 m disposable spool, 6.9 mm, black, halogen-free, flame-retardant, shielding class A Plus Plus, UV-resistant, shielding factor typically 130 dB, construction typically 1.13 Cu 4.8 Al CuSn Al, foil bonded, meter marking, KDG Vodafone approval

Property	Value
Sheath color:	black
Outer diameter approx.:	6.9 mm
Dielectric:	Polyethylene, foamed (Foam PE)
Outer conductor form:	Foil + braid
Characteristic impedance:	75 Ohm
Inner conductor diameter:	1.13 mm
UV-resistant:	yes
Sheath material:	other
Outer conductor diameter:	4.8 mm
Inner conductor material:	copper
Inner conductor class:	Class 1 = single-wire
Outer conductor material:	copper
Reinforcement:	no
Permissible external cable temperature during assembly/handling:	40.0 °C
Permissible external cable temperature after assembly without vibration:	70.0 °C
Halogen-free according to EN 60754-1/2:	yes
Min. permissible bending radius, flexible use with forced guidance:	70 mm
Inner conductor surface:	bare
Outer conductor surface:	tinned
Number of shielding layers:	3
Specification of sheath material:	other
Fire behavior class according to EN 13501-6:	Cca
Smoke development class according to EN 13501-6:	s1a
Dripping behavior class according to EN 13501-6:	d1
Acid development class according to EN 13501-6:	a1
Min. permissible bending radius, flexible use/free movement:	45 mm
Min. permissible bending radius, stationary use/fixed installation:	35 mm
Laying in the ground:	no
