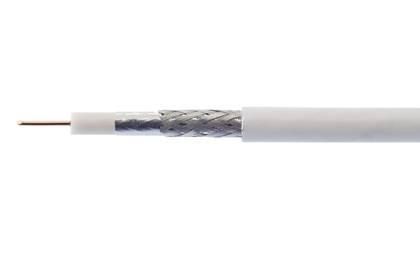

Kathrein LCD130A+ coaxial cable 130dB 250m roll box

In stock

SKU: 395222

Price on request

€2.30

€0

Overview

Coaxial cable, BauPVO EN 50575-B2ca s1a d0 a1, 250 m roll-off box, 6.9 mm, white PVC, shielding level typically 130 dB, shielding class A Plus Plus, meter marking, construction typically 1, 13 Cu 4.8 Al CuSn Al, foil bonded, KDG Vodafone approval, use in escape routes, hospitals, kindergartens, etc.

Property	Value
Sheath color:	white
Outer diameter approx.:	6.90 mm
Dielectric:	Polyethylene, foamed (Foam PE)
Outer conductor form:	Foil + braid
Characteristic impedance:	75 Ohm
Inner conductor diameter:	1.1 mm
UV-resistant:	yes
Sheath material:	Polyvinyl chloride (PVC)
Outer conductor diameter:	6.9 mm
Inner conductor material:	copper
Inner conductor class:	Class 1 = single-wire
Outer conductor material:	copper
Reinforcement:	no
Permissible external cable temperature during assembly/handling:	-25 to 55 °C
Permissible external cable temperature after assembly without vibration:	-40 to 70 °C
Halogen-free in accordance with EN 60754-1/2:	yes
Min. permissible bending radius, flexible use with forced guidance:	70 mm
Inner conductor surface:	bare
Outer conductor surface:	tinned
Number of shielding layers:	3
Specification of sheath material:	other
Fire behavior class according to EN 13501-6:	B2ca
Smoke development class according to EN 13501-6:	s1a
Drip behavior class according to EN 13501-6:	d0
Acid development class according to EN 13501-6:	a1
Min. permissible bending radius, flexible use/free movement:	45 mm
Min. permissible bending radius, stationary use/fixed installation:	35 mm
Laying in the ground:	no
