Televes SK2000plus coaxial cable 1.0/4.6/6.8mm Class, 100m

In stock

SKU: 22752

Price on request

€1.18

€0

Overview

With excellent shielding and attenuation properties and an excellent price/performance ratio, the SK 2000 plus is the ideal cable for BK/SAT or terrestrial systems. 135 dB typical shielding (EN 50117) Coupling resistance < 3.5 m½/m (5 - 30 MHz) High braid 168 cores (copper braid) Triple shielded Foil (glued) - braid size Foil Dielectric PE - coated Low attenuation (2050 MHz - 27.4 dB)

Property	Value
Sheath color:	white

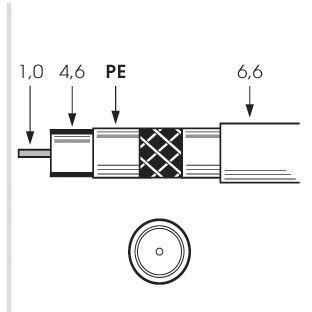

Outer diameter approx.:	6.7 mm
Dielectric:	Polyethylene, foamed (Foam PE)
Outer conductor form:	Foil + braid
Characteristic impedance:	75 Ohm
Inner conductor diameter:	1.02 mm
UV-resistant:	no
Sheath material:	Polyvinyl chloride (PVC)
Outer conductor diameter:	4.6 mm
Inner conductor material:	copper
Inner conductor class:	Class 1 = single wire
Outer conductor material:	copper
Reinforcement:	no
Permissible external cable temperature during assembly/handling:	-5 to 60 °C
Permissible Cable external temperature after installation without vibration:	-15 to 65 °C
Halogen-free according to EN 60754-1/2:	no
Inner conductor surface:	bare
Outer conductor surface:	tinned
Number of shielding layers:	3
Specification of sheath material:	other
Fire behavior class according to EN 13501-6:	Eca
Smoke development class according to EN 13501-6:	without
Drip behavior class according to EN 13501-6:	without
Acid development class according to EN 13501-6:	without
Min. permissible bending radius, stationary use/permanently installed:	33.5 mm
Laying in the ground:	no
