Televes SK2003-T coaxial, black, 1.0/4.6/6.7, 500m Tr.

In stock

SKU: 231857

Price on request

€1.31

€0

Overview

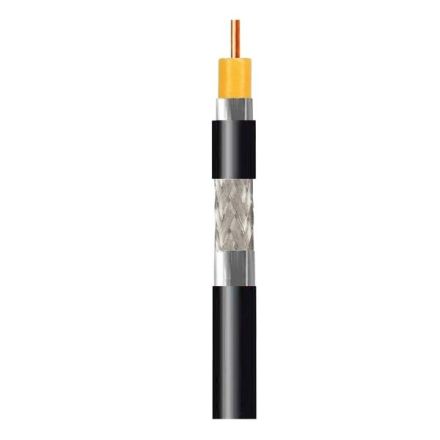

Coaxial cable UV-resistant, halogen-free and flame-retardant, very high shielding efficiency, gas injection dielectric with bonded aluminum foil, meter imprint, high aging resistance. CE

Property	Value
Sheath color:	black
Outer diameter approx.:	6.7 mm
Dielectric:	Polyethylene, foamed (Foam PE)
Outer conductor form:	Foil + braid
Characteristic impedance:	75 Ohm
Inner conductor diameter:	1.02 mm
UV-resistant:	yes
Sheath material:	other
Outer conductor diameter:	4.6 mm
Inner conductor material:	copper
Inner conductor class:	Class 1 = single wire
Outer conductor material:	copper
Reinforcement:	no
Permissible external cable temperature during assembly/handling:	-5 to 60 °C
Permissible Cable external temperature after installation without vibration:	-15 to 65 °C
Halogen-free according to EN 60754-1/2:	yes
Inner conductor surface:	bare
Outer conductor surface:	tinned
Number of shielding layers:	3
Specification of sheath material:	other
Fire behavior class according to EN 13501-6:	Dca
Smoke development class according to EN 13501-6:	s2
Drip behavior class according to EN 13501-6:	d2
Acid development class according to EN 13501-6:	a2
Min. permissible bending radius, stationary use/permanently installed:	33.5 mm
Laying in the ground:	no
