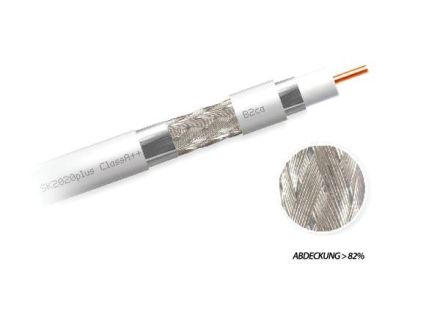

Televes SK2020plus-T coaxial cable 3f. LSFH A++ 500m

In stock

SKU: 318512

Price on request

€1.41

€0

Overview

The SK2020plus not only impresses with its compliance with fire protection class B2ca, but also with a high shielding level of 135 typ dB and excellent attenuation properties. It is therefore ideal for use in satellite, cable and terrestrial systems. Smoke development s1a, acidity a1, dripping/dropping d1.

Property	Value
Sheath color:	white
Outer diameter approx.:	6.9 mm
Dielectric:	Polyethylene, foamed (Foam PE)
Outer conductor form:	Foil + braid
Characteristic impedance:	75 Ohm
Inner conductor diameter:	1.05 mm
UV-resistant:	yes
Sheath material:	other
Outer conductor diameter:	4.65 mm
Inner conductor material:	copper
Inner conductor class:	Class 1 = single wire
Outer conductor material:	copper
Reinforcement:	no
Permissible external cable temperature during assembly/handling:	-5 to 60 °C
Permissible Cable external temperature after installation without vibration:	-15 to 65 °C
Halogen-free according to EN 60754-1/2:	yes
Inner conductor surface:	bare
Outer conductor surface:	tinned
Number of shielding layers:	3
Sheath material specification:	other
Fire behavior class according to EN 13501-6:	B2ca
Smoke development class according to EN 13501-6:	s1a
Drip behavior class according to EN 13501-6:	d1
Acid development class according to EN 13501-6:	a1
Min. permissible bending radius, stationary use/permanently installed:	33.5 mm
Laying in the ground:	no
