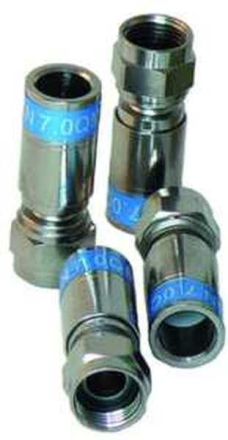

Televes FUP2000 F-Universal compression str. 7.0

In stock
SKU: 231715
€0.94
Into a basketIn the basketGo

Overview

The F universal compression connectors (FUP...) are suitable for almost all mini, midi and standard RG6 coaxial cables and meet the requirements of shielding class A+. Thanks to an improved compression technology, where the braid no longer has to be folded back, the connectors can be pushed effortlessly onto the cable. This means that they can also be easily mounted on types with a polyethylene (PE) sheath, which becomes very hard at low temperatures, without any tricks such as slitting or heating. The connectors can be pressed with a standard compression tool with a tensile strength of 236N/20kg, which ensures an optimal mechanical and electrical connection. They are also waterproof (30 m/8 h) and have a special coating that provides high corrosion protection. The FUP2000 can be used in a frequency range up to 3 GHz. It is suitable for standard coaxial cables with a dielectric diameter of 4.9-5.4 mm and an outer diameter of 6.4-7.5 mm and can be used for all multimedia applications thanks to its shielding level of >120 dB.

PropertyValue
Connector type:F
Connection type:other
Impedance:75 Ohm
Cable type:other
Contact design:male
Design:Plug
Insulated installation:yes
Angle plug:no

Characteristics

Cable typeOther
Impedance75 Ohm
Connector typeF
ManufacturerTeleves
HAN380210
GTIN8424450185841
Connection typeOther
VersionPlug
Insulated installationYes
