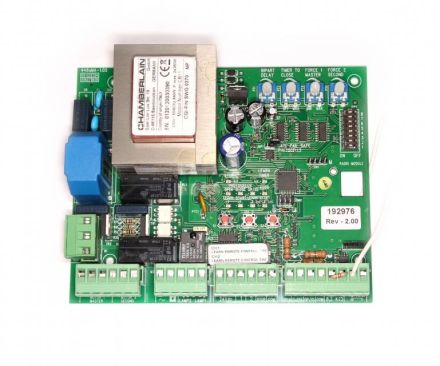

Control electronics for swing gates model CB11 Suitable for motors 230V/50Hz, separate force setting for each gate leaf, soft/stop selectable, delay for overlapping leaves selectable, opening of a leaf possible, dip switch for general program selection - Separate force setting for each gate leaf - Soft/stop selectable - Delay for overlapping leaves selectable - Opening of a leaf possible - Dip switch for general program selection - Automatic closing selectable - Interchangeable radio modules (433MHz, 27MHz, 315MHz) - Optional radio module not included - Memory for 80 handheld transmitters - Connection for e-lock - Control of external lighting possible - Connection for safety light barriers (771E) - Contact strip connection 8.2KOhm. - Waterproof box included in delivery - Complies with EN12453 and EN13241-1 - TÜV tested - Radio module (eg: 041A5456B) is optional and not included in delivery
The control can be used with the following drives: from production date: 01/2006 MotorLift: HC280ML, HC300ML, HC400ML, HC600ML
