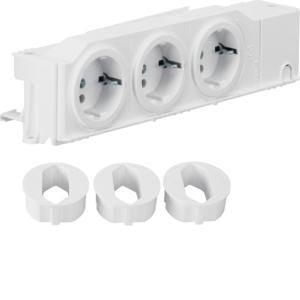

Hager VZ00AS socket 90 degrees 3-way rotatable

In stock
SKU: 158675
€93.79
Into a basketIn the basketGo

Overview

Schuko socket, universal, 3-way rotatable, screwed, top hat rail mounting. Pre-wired 3-way protective contact socket with increased contact protection with connection housing for cable connection via plug-in terminals 1.5 - 2.5 mm². Three independent socket pots can be rotated by 90°. For quick attachment in distribution cabinets for DIN top hat rails or mounting plates. Euro adapters must be inserted for protection class II (protectively insulated). The socket connection housing can be installed with a type 3 surge protection module (not included).

Property Value
Rated voltage: 230 V
Rated current: 16 A
With hinged lid: no
Voltage type: other
Design: SCHUKO
With increased contact protection: yes
With Indicator light: no
Protection class (IP): IP2X
Number of sockets: 3
Number of active contacts (round): 6
Protective conductor contact round: no

Characteristics

ManufacturerHAGER
HANVZ00AS
GTIN3250616668386
Number of active contacts (approx.)6
VersionSCHUKO
Rated voltage230V
Rated current16A
With hinged lidNo
With increased contact protectionYes
IP protection)IP2X
Protective conductor contact roundNo
Voltage typeOther
Hager VZ00AS socket 90 degrees 3-way rotatable
Hager VZ00AS socket 90 degrees 3-way rotatable
€93.79
Into a basketIn the basketGo
