Hochköpper 00075031 H 11.6613/673.02 RD30 3-way Badora socket SCHUKO

Hochköpper 00075031 H 11.6613/673.02 RD30 3-way Badora socket SCHUKO

In stock

SKU: 903827

Price on request

€139.85

€0

Overview

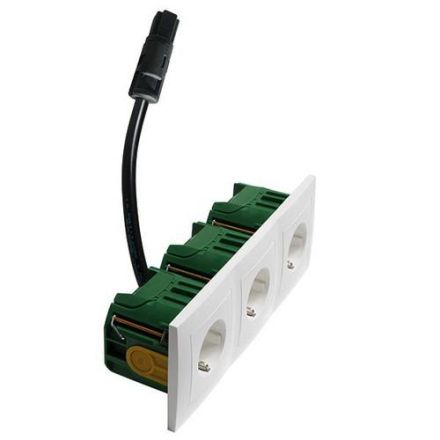

Socketline Connect device combination, BADORA pure white, consisting of: (from left to right) 3-way SCHUKO socket with screw terminals, 2-pole, 10/16 A 250 V, in a 3-way frame, with connection cable and WAGO WINSTA RD (round) connector, cable length 30 cm and halogen-free Attema socket UHW50, horizontal design

Property	Value
Number of units:	1
Color:	white
Suitable for protection class (IP):	IP20
Nominal voltage:	230 V
Nominal current:	16 A
Lockable:	no
With increased contact protection:	no
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Frequency:	50 Hz
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	other
With fine fuse:	no
Mounting type:	Claw/screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Surface protection:	other
Surface finish:	matt
Number of modules (with modular construction):	1
Device width:	225 mm
Device height:	83 mm
Device depth:	53 mm
Insulated installation:	yes
With loop-through function:	yes
With on/off switch:	no
With function lighting:	no
With orientation light:	no
Impact resistance:	other
Transparent:	no
With signal lamp:	no
Number of Phases:	1
Antibacterial treatment:	no
Min. depth of device box:	51.3 mm

Characteristics

Way

HABH 11.6613/673.02 RD30 3-way Badora

Manufacturer

HAN00075031

GTIN4010105075038

LockableNo

Connection typeOther

Antibacterial treatmentNo

Number of Units1

Number of modules (for modular construction)1

Number of phases1

Surface finishFrosted

Ejection mechanismNo

Mounting typeClaw/screw fastening

Color

Residual current protectionNo

Frequency50Hz

Suitable for protection class (IP)IP20

Device width225 mm

Device height83 mm

Device depth53 mm

Halogen freeYes

Insulated installationYes

Min. depth of the device box51.3 mm

With loop-through functionYes

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With signal lampNo

With increased contact protectionNo

Mounting typeFlush-mounted

Nominal voltage230V

Rated current16A

Surface protectionOther

Impact resistanceOther

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
