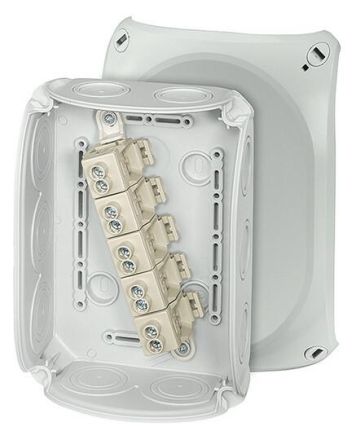

Hensel DK1010G 2.5-10qmm 3pha.16qmm 1pha. 5-pin. Cable junction box

In stock
SKU: 480867
€21.17
Into a basketIn the basketGo

Overview

Cable junction box made of high-quality thermoplastic. For surface-mounted applications in buildings or protected installation outdoors. With external tabs for fastening and cover fastening via quick-release fasteners. With innovative terminal technology up to 10 mm, 5-pole. Cable entry via elastic sealing membranes in the housing walls and base. Subsequent use of cable glands possible by removing the sealing membrane. With lid retaining strap.

Property Value
Width: 130 mm
Length: 180 mm
Depth: 77 mm
Color: grey
Protection class (IP): IP66
Number of entries: 10
Halogen-free: yes
Mounting type: Wall/ceiling mounting
Material: Plastic
Cover fastening: screwed
Sealable: yes
Can be arranged in rows: no
Shape: rectangular
Max. Conductor cross-section: 16 mm²
Type of housing feedthrough: other
For Ex-Zone Gas: without
Functional integrity: without
Explosion-tested version: no
Potting compound supplied: no
Potable: no
For Ex-Zone Dust: without
Surface: untreated
For pipe diameter: other
With shielding: no
Rated insulation voltage Ui: 690 V
Introduction from the rear: yes
Weatherproof: no
Cover design: other
Operating temperature: -25 to 40 °C

Characteristics

Explosion-tested versionNo
HABDK1010G 2.5-10qmm 3pha.16qmm 1pha. 5-pin
ManufacturerHensel
HANDK 1010 G
GTIN4012591125037
Cover designOther
Rated insulation voltage Ui690V
Width130 mm
Operating temperature-25 to 40 °C
ColorGray
ShapeRectangular
Functional preservationWithout
Halogen freeYes
Length180 mm
Mounting typeWall/ceiling mounting
SurfaceUntreated
IP protection)IP66
Depth77 mm
MaterialPlastic
