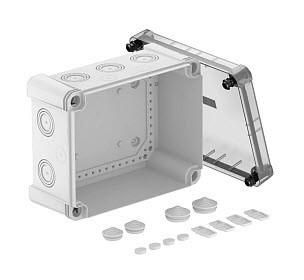

OBO Bettermann X16 LGR-TR 240x191mm grey transparent cover cable junction box, 2005070

In stock
SKU: 509737
€38.72
Into a basketIn the basketGo

Overview

Electrical cables are brought together in the robust cable junction boxes of the X series. They are suitable for indoor and outdoor use. The entry openings are pre-punched for easy cable entry. They are suitable for indoor and outdoor use. When used in unprotected outdoor areas, the cable junction box must be protected against direct weather influences (e.g. snow, wind, rain or sun). The cable junction box is tested according to DIN EN 60670-1,0606-1:2014 (EN 60670-1:2005 + Cor.:2007 + Cor.:2010 + A1:2013) and DIN EN 60670-22,0606-22:2007 (EN 60670-22:2006). The cable junction box meets the requirements of the protection class test according to IP 67 according to DIN EN 60529, VDE0470-1:2014 (EN 60529/AC:2016).

Property Value
Width: 191 mm
Length: 241 mm
Depth: 126 mm
Color: gray
Protection class (IP): IP67
Equipment: without
Mounting type: Wall/ceiling mounting
Material: Plastic
Cover fastening: screwed
Can be arranged in series: yes
Shape: rectangular
Type of housing feedthrough: pre-punched
Halogen-free: yes
Number of entries: 10
Max. conductor cross-section: 16 mm²
With shielding: no
Rated insulation voltage Ui: 750 V
Insertion from the rear: no
Weatherproof: yes
Operating temperature: -25 to 65 °C

Characteristics

HABX16 LGR-TR 240x191mm grey transp. Lid
ManufacturerOBO Bettermann
HAN2005070
GTIN4012196577545
Rated insulation voltage Ui750V
Width191 mm
Operating temperature-25 to 65 °C
ColorGray
ShapeRectangular
Halogen freeYes
Length241 mm
Mounting typeWall/ceiling mounting
IP protection)IP67
Depth126 mm
MaterialPlastic
