Max. conductor cross-section rigid (single/multi-wire)35.0 mm²
Max. conductor cross-section flexible (fine-stranded)25.0 mm²
Protection level1.2 kV
With remote signaling contactYes
Number of conductors (excluding earth)3
Network form TTNo
Network type TN-SNo
Max. discharge current (8/20)50.0 kA
Test class type 2Yes
Network form TNNo
Network type TN-CYes
Network type TN-C-SNo
Short circuit strength (Isccr)25.0 kA
Protection level L-N1.6 kV
Network type DCNo
Integrated backup fuseNo
Network type ITNo

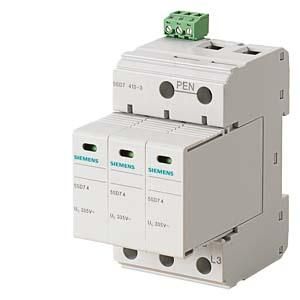

HAB5SD7413-3 T1/T2, UN240/400V
HAN5SD7413-3
GTIN4001869427638
Size3 HP
Highest continuous voltage AC335V
Mounting typeDIN rail TH35
Nominal discharge current (8/20)50.0kA
Nominal voltage AC230V
IP protection)IP20
Signaling on the deviceOptical
