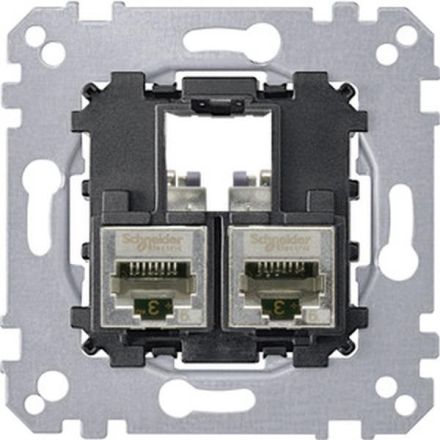

MERTEN MEG4575-0012 RJ45 Cat5e STP support plate

In stock

SKU: 424477

Price on request

€24.81

€0

Overview

Connection via insulation displacement technology (tool-free). To be completed with: Central plate for Schneider Electric connector 2-way system M MEG4574-03xx/-04xx, system design MEG4572-60xx Central plate with label field for Schneider Electric connector 2-way system design MEG4574-60xx

Property	Value
Designable:	yes
Category:	5E
Surface-mounted:	yes
Mounting type:	screws
Outlet direction:	straight
Sockets shielded:	yes
Housing shielded:	yes
Channel installation:	yes
Connector type:	RJ45 8(8)
Suitable for number of sockets/couplings:	2.0
Color coding:	yes
Connection type:	Insulation displacement terminal IDC
Separate ground connection:	no
Floor tank/underfloor installation:	yes
With text field:	no
Separate cable strain relief:	no
With sockets/couplings:	yes
Protection class (IP):	IP20
Color:	other
Mechanical coding:	yes
With Dust protection:	no
Mounting type shield connection:	Clip
Composition:	Base element
Device width:	72.0 mm
Device height:	72.0 mm
Device depth:	29.0 mm
