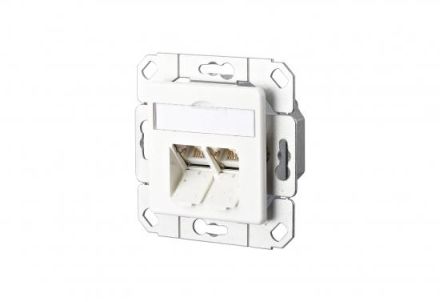

Channel connection unit with one or two 8-pin RJ45 sockets, GHMT Cat.6 12C-de-embedded validated, compliance with Class E, A Channel-Link according to ISO/IEC 11801-1, DIN EN 50173-1 tested: Channel-Link up to 500 MHz, 10 GBit/s Ethernet (IEEE 802.3an), remote powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT suitable, Alien Next optimized, shielded individual sockets, screwing of the flap for strain relief and shield removal from the front, practical cable feed from 8 sides, connection of data cables AWG26/1 - 22/1 (single-wire), with viewing window for enclosed label insert, label sheet 209 x 294 mm see accessories, integrated dust protection flaps (also colored available), compatible with design centre pieces from switch ranges, suitable for installation in standard flush-mounted cups and hollow-wall cups, colour of the cover parts pearl white RAL 1013 or pure white RAL 9010, surface matt structured, variants: 1 port, 2 port, colour variants: pure white and pearl white
