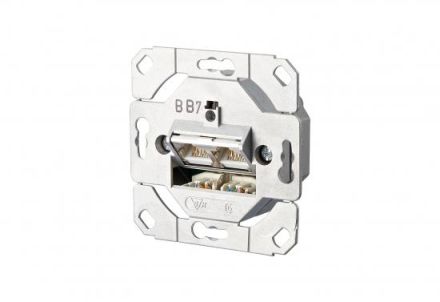

Channel connection unit with one or two 8-pin RJ45 sockets Cat.6A Component testing according to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09, TIA/EIA-568-C.2 (2009-08) and IEC 60603-7-51 Ed.1 (12/2008), GHMT validated Compliance with class EA up to 500 MHz according to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09 tested: Component up to 600 MHz, link up to 800 MHz suitable for 10GBit Ethernet (IEEE 802.3an), remote powering (PoE, PoE plus and UPoE) and HDBaseT HF-technically optimized and ergonomically shaped LSA connection terminal Screwing of the flap for strain relief and shield removal takes place from the front Practical cable feed from 8 sides Connection of data cables AWG26/1 - 22/1 (single-wire) Plug direction 45° inclined downwards Compatible with design center pieces of switch ranges Suitable for installation in standard flush-mounted cups and hollow-wall cups without cover parts Variants: 1 port, 2 port
