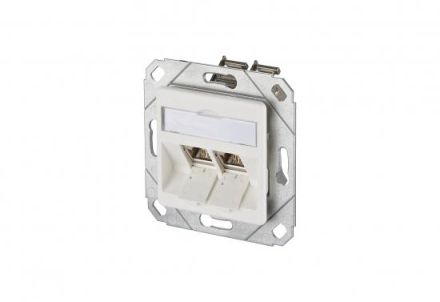

METZ CONNECT 2xRJ45 E-DATModul Cat.6A 8/8 (8) UPk data connection box pure white, 1309121102-E

Channel connection unit with E-DAT module, Cat.6, A Component testing according to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09, TIA/EIA-568-C.2 (2009-08) and IEC 60603-7-51 Ed.1 (12/2008), GHMT validatedCompliance with class E, A according to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09Tested: Link up to 500 MHz, suitable for 10 GBit Ethernet (IEEE 802.3an), remote powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT, easy-to-install connection of the 2 to 4-pair data cable AWG 26/1 - 22/1 and stranded conductor with 7-wire copper strand AWG 26/7 - 22/7 on BTR 8-way IDC insulation displacement terminals, marking of the wire assignment T568A or T568B, plug-in direction of the module inclined 45° downwards, strain relief with cable ties on the module, with viewing window for label insert (label inserts included in delivery), label sheet 209 x 294 mm see accessories, integrated dust protection flaps (also available in color), color of the cover parts pearl white RAL 1013 or pure white RAL 9010, surface matt structured, compatible with design center pieces of switch ranges (note 3 port center pieces currently only available from JUNG), not suitable for installation in standard flush-mounted and hollow wall cups!, variants: 1 port, 2 port, 3 port, Color variants: pure white and pearl white
