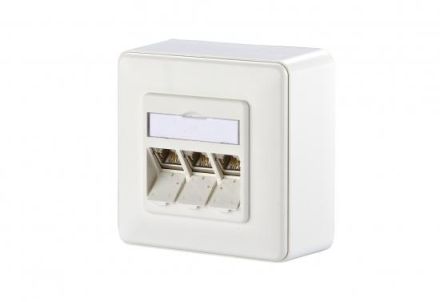

Surface-mounted connection unit with E-DAT module, Cat.6, A Component testing according to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09, TIA/EIA-568-C.2 (2009-08) and IEC 60603-7-51 Ed.1 (12/2008), GHMT validatedCompliance with class E, A according to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09Tested: Link up to 500 MHz, suitable for 10 GBit Ethernet (IEEE 802.3an), remote powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT, easy-to-install connection of the 2 to 4-pair data cable AWG 26/1 - 22/1 and stranded conductor with 7-wire copper strand AWG 26/7 - 22/7 on BTR 8-way IDC insulation displacement terminals, marking of the wire assignment T568A or T568B, plug direction of the module inclined 45° downwards, strain relief with cable ties on the module, with viewing window for enclosed label insert, label sheet 209 x 294 mm see accessories, integrated dust protection flaps (also available in color), color of the cover parts pearl white RAL 1013 or pure white RAL 9010, surface matt structured, variants: 1 port, 2 port, 3 port, color variants: pure white and pearl white
| Property | Value |
| Category: | 6A (IEC) |
| Color: | white |
| RAL number: | 9010 |
| Connection type: | Insulation displacement terminal IDC |
| Sockets shielded: | yes |
| Housing shielded: | yes |
| Separate ground connection: | yes |
| With text field: | yes |
| Designable: | yes |
| Separate cable strain relief: | yes |
| Surface-mounted: | no |
| Installation type shield connection: | terminal |
| outlet direction: | angled |
| With dust protection: | yes |
| Terminal resistor: | no |
| Mechanical coding: | no |
| Color coding: | yes |
| Device width: | 85.00 |
| Device height: | 85.00 |
| Device depth: | 43.00 |
| Flush-mounted: | yes |
| Duct installation: | yes |
| Floor tank/underfloor installation: | no |
| Fastening type: | screws |
| Composition: | Basic element with complete housing |
| Connector type: | RJ45 8 (8) |
| With sockets/couplings: | yes |
| Suitable for number of sockets/couplings: | 3 |
