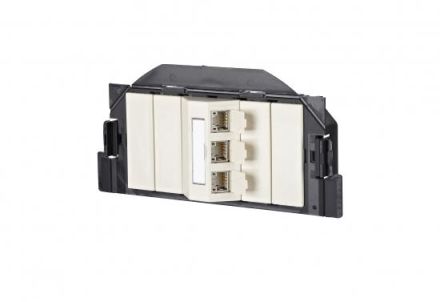

Connection unit for installation in device inserts in the underfloor area, suitable for underfloor device inserts from OBO Bettermann (Ackermann) and individual types from :hager (Electraplan Solutions), design GB2, with E-DAT module, Cat.6, A Component testing according to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09, TIA/EIA-568-C.2 (2009-08) and IEC 60603-7-51 Ed.1 (12/2008), GHMT validated Compliance with class E, A according to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09 tested: Link up to 500 MHz, for 10 GBit Ethernet (IEEE 802.3an), remote powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT suitable, easy-to-install connection of the 2- to 4-pair data cable AWG 26/1 - 22/1 and stranded conductors with 7-wire copper strand AWG 26/7 - 22/7 to BTR 8-way IDC insulation displacement terminals, marking of the wire assignment T568A or T568B, including module carrier, cover caps and blank covers, plug-in direction of the modules inclined 45° upwards, with viewing window for the enclosed label insert, label sheet 209 x 294 mm see accessories, integrated dust protection flaps (also available in color), color: device cup black, cover parts pearl white, variants: 3 port, 6 port, 9 port
| Feature | Value |
| Category: | 6 |
| Color: | white |
| RAL number: | 1013 |
| Connection type: | Insulation displacement terminal IDC |
| Sockets shielded: | yes |
| Housing shielded: | no |
| Separate ground connection: | yes |
| With text field: | yes |
| Designable: | no |
| Separate cable strain relief: | no |
| Surface-mounted: | no |
| Mounting type shield connection: | Clip |
| Outlet direction: | slanted |
| With dust protection: | yes |
| Terminal resistor: | no |
| Protection class (IP): | IP20 |
| Mechanical coding: | no |
| Color coding: | no |
| Device width: | 165.00 |
| Device height: | 92.00 |
| Device depth: | 55.00 |
| Flush-mounted: | no |
| Duct installation: | no |
| Floor tank/underfloor installation: | yes |
| Mounting type: | snap in |
| Composition: | Base element with complete housing |
| Connector type: | RJ45 8 (8) |
| With sockets/couplings: | yes |
| Suitable for number of sockets/couplings: | 3 |
