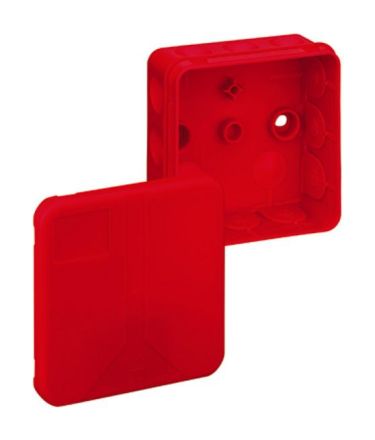

Spelsberg 2K-12 SB-L junction box, 34471201

In stock
SKU: 482678
€1.83
Into a basketIn the basketGo

Overview

Junction box according to DIN EN 60670 (VDE 0606), 12 entries, 2 floor entries, with self-sealing, soft entry membranes, no tool required to open the cable entry, sealing range 2 - 14 mm, with internal fastening points, with protection class IP55, up to 2.5, with protection degree IK07, protection class II, tested, halogen-free, 85 x 85 x 37, red, without terminals, for VDE-approved. Single terminals for marking circuits of emergency lighting

Property Value
Width: 85 mm
Length: 37 mm
Depth: 85 mm
Color: red
Protection class (IP): IP55
Number of entries: 12
Halogen-free: yes
Equipment: without
Mounting type: Wall/ceiling mounting
Material: Plastic
Cover fastening: snap-on
Sealable: no
Can be arranged in rows: no
Shape: rectangular
Max. Conductor cross-section: 2.5 mm²
Type of housing feedthrough: Sealing membrane
For Ex-Zone Gas: without
Functional integrity: without
Explosion-tested version: no
Potting compound supplied: no
Potable: yes
For Ex-Zone Dust: without
Installation under water: no
Transparent cover: no
Installation in the ground: no
Surface: untreated
With shielding: no
Rated insulation voltage Ui: 400 V
Introduction from the rear: yes
Weatherproof: yes
Cover design: Mounting cover
Operating temperature: -25 to 40 °C

Characteristics

Explosion-tested versionNo
HAB2K-12 SB-L
ManufacturerSpelsberg
HAN34471201
GTIN4013902628766
Cover designMounting cover
Rated insulation voltage Ui400V
Width85 mm
Operating temperature-25 to 40 °C
ColorRed
ShapeRectangular
Functional preservationWithout
Halogen freeYes
Length37 mm
Mounting typeWall/ceiling mounting
SurfaceUntreated
IP protection)IP55
Depth85 mm
MaterialPlastic
