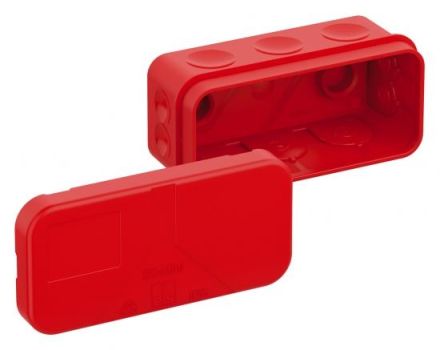

Spelsberg 34470801 2K-Mini SB-L junction box

In stock

SKU: 706176

Price on request

€1.78

€0

Overview

Junction box, with protection class IP55, nominal cross-section 2.5mm², Ui=400V AC, certified according to (DIN EN 60670-1/-22 (VDE 0606-1/-22)), self-sealing, soft entry membranes, sealing range 2-14mm, (1 at the rear, 10 at the side), internal fastening points, for standard indoor installations, red, without terminals, for marking circuits of emergency lightingDimensions: 89 x 43 x 38mm

Property	Value
Width:	89 mm
Length:	43 mm
Depth:	38 mm
Color:	red
Protection class (IP):	IP55
Number of entries:	12
Halogen-free:	yes
Equipment:	without
Mounting type:	Wall/ceiling mounting
Material:	Plastic
Cover fastening:	snap-on
Sealable:	no
Can be arranged in rows:	no
Shape:	rectangular
Max. Conductor cross-section:	2.5 mm²
Type of housing feedthrough:	Sealing membrane
For Ex-Zone Gas:	without
Functional integrity:	without
Explosion-tested version:	no
Potting compound supplied:	no
Potable:	yes
For Ex-Zone Dust:	without
Installation under water:	no
Transparent cover:	no
Installation in the ground:	no
Surface:	untreated
With shielding:	no
Rated insulation voltage Ui:	400 V
Introduction from the rear:	yes
Weatherproof:	yes
Cover design:	Mounting cover
Operating temperature:	-25 to 40 °C
