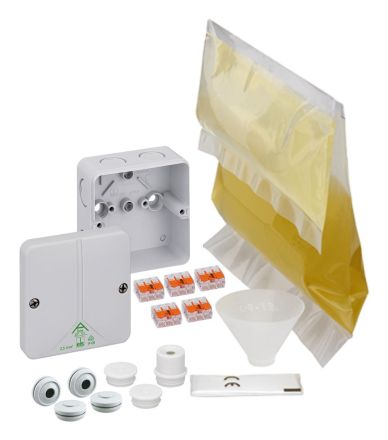

Junction box, with protection class IP68, nominal cross-section 2.5mm², Ui=450V AC, certified according to (DIN EN 60670-1/-22 (VDE 0606-1/-22) & DINV 0606-22-100), deflection membranes, M20, (1 rear, 7 side), internal fastening points, with screwless terminals for casting, for installation in flood areas and in the ground without traffic loads, grey, with 5 screwless 3-conductor terminals type Wago 221-413, max. nominal cross-section according to DIN EN 60998: 2.5mm², clampable cross-sections per pole: 3 x 0.2 to 2.5mm² rigid and 3 x 0.14 to 2.5mm² flexibleDimensions: 82 x 82 x 52mmIncluded accessories: 4 double membrane nozzles IP66 M20 sealing range 7-12mm, 2 sealing plugs M20, 1 attachment nozzle M20, 1 cast resin bag GHB1 with filling funnel
