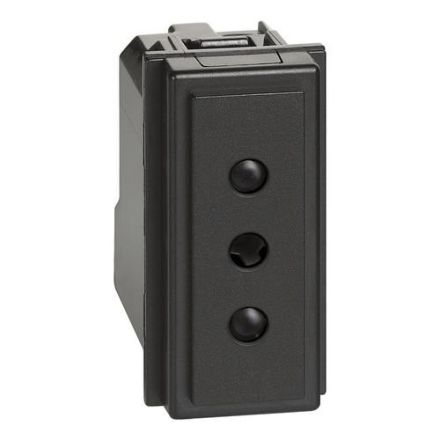

Bticino KG4113 LivingNow socket

In stock

SKU: 841241

Price on request

€4.50

€0

Overview

KG4113 LivingNow socket Manufacturer article number: KG4113, Manufacturer article name: KG4113 LivingNow

Property	Value
Version:	Italian type P11
RAL number (similar):	7015
Number of units:	1
Color:	anthracite
Suitable for protection class (IP):	IP20
Nominal voltage:	250 V
Nominal current:	10 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Frequency:	45 to 55 Hz
Ejection mechanism:	no
Halogen-free:	yes
Surge protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Print/marking:	other
Connection type:	screw terminal
With fine fuse:	no
Mounting type:	snap-on fastening
Material:	plastic
Material quality:	thermoplastic
Surface:	untreated
Surface finish:	matt
Number of modules (with modular design):	1
Device width:	22 mm
Device height:	45 mm
Device depth:	38 mm
Insulated installation:	no
With loop-through function:	no
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Impact resistance:	other
Transparent:	no
Protective contact:	yes
Protective conductor contact round:	yes
Number of active contacts (round):	1
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no
Min. depth of device box:	38 mm

Characteristics

HABKG4113 LivingNow

Manufacturer

HANKG4113

GTIN8005543611944

LockableNo

Connection typeScrew terminal

Antibacterial treatmentNo

Number of Units1

Number of modules (for modular construction)1

Number of phases1

Number of active contacts (approx.)1

Printing/markingOther

Version

Surface finishFrosted

Ejection mechanismNo

Mounting typeSnap-on fastening

Color

Residual current protectionNo

Frequency45 to 55 Hz

Suitable for protection class (IP)IP20

Device width22 mm

Device height45 mm

Device depth38 mm

Halogen freeYes

Insulated installationNo

Min. depth of the device box38 mm

With loop-through functionNo

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeFlush-mounted

Nominal voltage250V

Rated current10A

SurfaceUntreated

RAL number (similar)7015

Impact resistanceOther

Protective contactYes

Protective conductor contact roundYes

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
