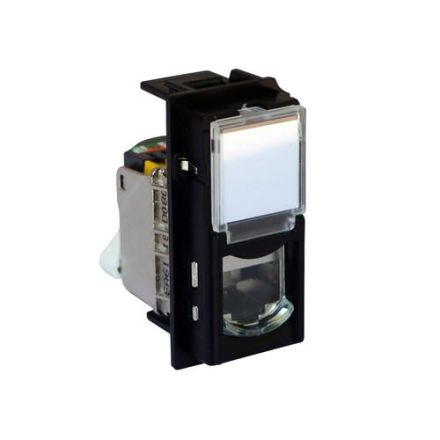

Bticino KG4279C6A LivingNow data socket

In stock

SKU: 841226

Price on request

€17.50

€0

Overview

KG4279C6A LivingNow data socket Manufacturer article number: KG4279C6A, Manufacturer article name: KG4279C6A LivingNow

Property	Value
Category:	6A (IEC)
Surface-mounted:	no
Mounting type:	snap-in
Outlet direction:	straight
Sockets shielded:	no
Channel installation:	no
Connector type:	RJ45 8(8)
Suitable for number of sockets/couplings:	1
Color coding:	yes
Connection type:	Insulation displacement terminal IDC
RAL number:	7015
Separate earthing connection:	no
Floor tank/underfloor installation:	no
With text field:	yes
Separate cable strain relief:	no
With sockets/couplings:	yes
Protection class (IP):	IP21
Color:	anthracite
With dust protection:	yes
Installation type shield connection:	without
Composition:	Base element with central cover plate
Device width:	22.5 mm
Device height:	45 mm
Device depth:	34 mm
