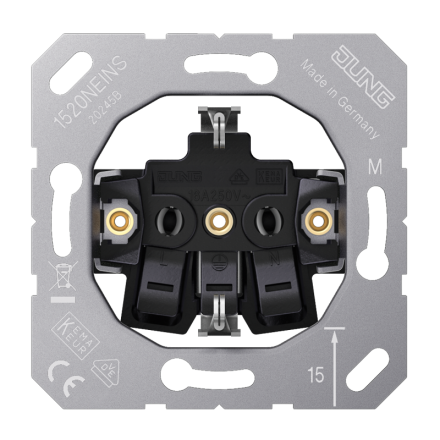

Jung 1520NEINS SCHUKO® socket insert, 16 A 250 V ~, without claws

Jung 1520NEINS SCHUKO® socket insert, 16 A 250 V ~, without claws

In stock

SKU: 183330

Price on request

€4.16

€0

Overview

SCHUKO® socket insert, 16 A 250 V ~, without claws SCHUKO® socket insert
with spring terminals for rigid and untreated flexible conductors up to 2.5 mm2
Support ring is integrated into the protective measure via an earthing rail.

Property	Value
Number of units:	1
Suitable for protection class (IP):	IP20
Nominal voltage:	250 V
Nominal current:	16 A
Lockable:	no
With increased contact protection:	no
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Ejection mechanism:	no
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	Plug-in terminal
With fine fuse:	no
Mounting type:	Mounting with screw
With loop-through function:	no
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Transparent:	no
Protective contact:	yes
Round protective conductor contact:	no
Number of active contacts (round):	2
With signal lamp:	no
Number of phases:	1
