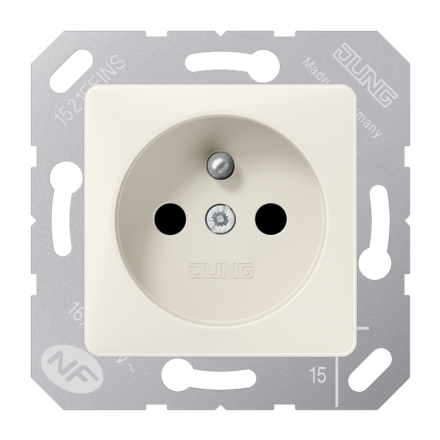

Jung 5120FBFKI socket, French/Belgian system, 16 A 250 V ~, without claws, integrated increased contact protection, SAFETY+, thermoplastic, 50 x 50 mm, white

Jung 5120FBFKI socket, French/Belgian system, 16 A 250 V ~, without claws, integrated increased contact protection, SAFETY+, thermoplastic, 50 x 50 mm, white

In stock

SKU: 182652

Price on request

€15.25

€0

Overview

Socket, French/Belgian system, 16 A 250 V ~, without claws, integrated increased contact protection, SAFETY+, thermoplastic, 50 x 50 mm, white Socket, French/Belgian system, white
2-pole with earthing pin, 16 A 250 V ~
CEE 7/5
with integrated increased contact protection (Safety Plus)
with spring terminals for rigid and untreated flexible conductors up to 2.5 mm2
Support ring, claws and claw screws are integrated into the protective measure via an earthing rail.
Material: thermoplastic
Dimensions (W x H): 50 x 50 mm

Property	Value
RAL number (similar):	1013
Number of units:	1
Color:	white
Suitable for protection class (IP):	IP20
Rated voltage:	250 V
Rated current:	16 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Ejection mechanism:	no
Halogen-free:	yes
Surge protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	Plug-in terminal
With fine fuse:	no
Fastening type:	Claw/screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Surface finish:	glossy
Device width:	50 mm
Device height:	50 mm
With loop-through function:	no
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Transparent:	no
Protective contact:	yes
Round protective conductor contact:	yes
Number of active contacts (round):	2
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no

Characteristics

ColorWhite

HAB5120FBFKI

Manufacturer

HAN5120FBFKI

GTIN4011377150713

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units1

Number of phases1

Number of active contacts (approx.)2

Surface finishGlittering

Ejection mechanismNo

Mounting typeClaw/screw fastening

Color

Residual current protectionNo

Suitable for protection class (IP)IP20

Device width50 mm

Device height50 mm

Halogen freeYes

With loop-through functionNo

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeFlush-mounted

Nominal voltage250V

Rated current16A

RAL number (similar)1013

Protective contactYes

Protective conductor contact roundYes

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
