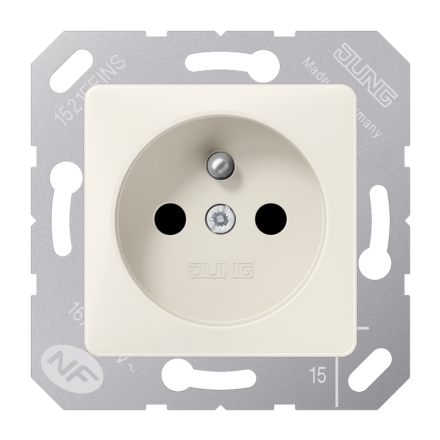

Jung 5121FBFKI socket, French/Belgian system, 16 A 250 V ~, screw terminals, without claws, integrated increased contact protection, SAFETY+, thermoplastic, 50

Jung 5121FBFKI socket, French/Belgian system, 16 A 250 V ~, screw terminals, without claws, integrated increased contact protection, SAFETY+, thermoplastic, 50

In stock

SKU: 182441

Price on request

€15.34

€0

Overview

Socket, French/Belgian system, 16 A 250 V ~, screw terminals, without claws, integrated increased contact protection, SAFETY+, thermoplastic, 50 Socket, French/Belgian system, white
2-pole with earthing pin, 16 A 250 V ~
CEE 7/5
with integrated increased contact protection (Safety Plus)
with screw terminals for rigid and flexible conductors up to 2.5 mm2 according to NFC 61-314
Support ring, claws and claw screws are integrated into the protective measure via an earthing rail.
Material: thermoplastic
Dimensions (W x H): 50 x 50 mm

Property	Value
RAL number (similar):	1013
Number of units:	1
Color:	white
Suitable for protection class (IP):	IP20
Rated voltage:	250 V
Rated current:	16 A
Lockable:	no
With increased contact protection:	yes
With Hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted Central insert:	no
Connection type:	screw terminal
With fine fuse:	no
Fastening type:	claw/screw fastening
Material:	plastic
Material quality:	thermoplastic
Surface finish:	glossy
Device width:	50 mm
Device height:	50 mm
With loop-through function:	no
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Transparent:	no
Protective contact:	yes
Protective conductor contact round:	yes
Number of active contacts (round):	2
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no

Characteristics

HAB5121 FBFKI

Manufacturer

HAN5121FBFKI

GTIN4011377076662

LockableNo

Connection typeScrew terminal

Antibacterial treatmentNo

Number of Units1

Number of phases1

Number of active contacts (approx.)2

Surface finishGlittering

Ejection mechanismNo

Mounting typeClaw/screw fastening

Color

Residual current protectionNo

Suitable for protection class (IP)IP20

Device width50 mm

Device height50 mm

Halogen freeYes

With loop-through functionNo

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeFlush-mounted

Nominal voltage250V

Rated current16A

RAL number (similar)1013

Protective contactYes

Protective conductor contact roundYes

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
