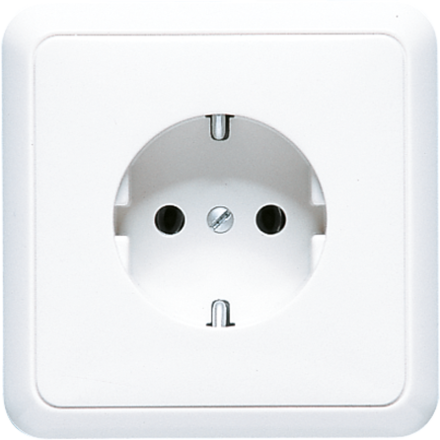

Jung 5520WW SCHUKO socket, 16 A 250 V ~, with frame, Duroplast, CD series, alpine white

Jung 5520WW SCHUKO socket, 16 A 250 V ~, with frame, Duroplast, CD series, alpine white

In stock

SKU: 136755

Price on request

€5.09

€0

Overview

SCHUKO socket, 16 A 250 V ~, with frame, Duroplast, CD series, alpine white with integrated frame
with spring terminals for rigid conductors up to 2.5 mm2
Connection terminals according to DIN VDE 0620
Material: Duroplast

Property	Value
RAL number (similar):	9016
Number of units:	1
Color:	white
Suitable for protection class (IP):	IP20
Nominal voltage:	250 V
Nominal current:	16 A
Lockable:	no
With increased contact protection:	no
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	Plug-in terminal
With fine fuse:	no
Mounting type:	Claw/screw fastening
Material:	Plastic
Material quality:	Duroplast
Surface finish:	glossy
Device width:	81 mm
Device height:	81 mm
With loop-through function:	no
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Transparent:	no
Protective contact:	yes
Protective conductor contact round:	no
Number of active contacts (round):	2
With signal lamp:	no
Number of phases:	1
Antibacterial Treatment:	no

Characteristics

ColorWhite

Manufacturer

HAN5520WW

GTIN4011377386709

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units1

Number of phases1

Number of active contacts (approx.)2

Surface finishGlittering

Ejection mechanismNo

Mounting typeClaw/screw fastening

Color

Residual current protectionNo

Suitable for protection class (IP)IP20

Device width81 mm

Device height81 mm

Halogen freeYes

With loop-through functionNo

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionNo

Mounting typeFlush-mounted

Nominal voltage250V

Rated current16A

RAL number (similar)9016

Protective contactYes

Protective conductor contact roundNo

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityDuroplast

Overvoltage protectionNo

Jung 5520WW SCHUKO socket, 16 A 250 V ~, with frame, Duroplast, CD series, alpine white
