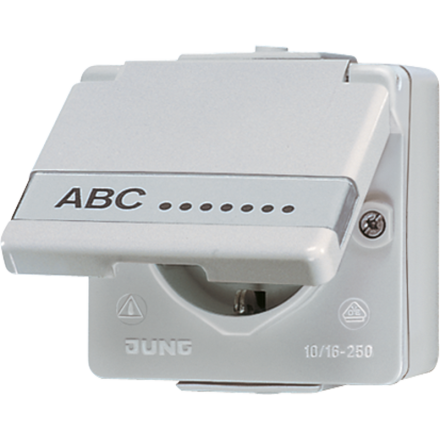

Jung 620NAW SCHUKO® socket, 16 A 250 V ~, with label field, IP 44, WG 600

Jung 620NAW SCHUKO® socket, 16 A 250 V ~, with label field, IP 44, WG 600

In stock

SKU: 136775

Price on request

€11.01

€0

Overview

with label field 17 x 72 mm, with spring terminals for rigid and untreated flexible conductors up to 2.5 mm2, connection terminals according to DIN VDE 0620, spare part:, transparent cover with insert item no.: 606 NA

Property	Value
RAL number (similar):	7035
Number of units:	1
Color:	gray
Suitable for protection class (IP):	IP44
Nominal voltage:	250 V
Rated current:	16 A
Lockable:	no
With increased contact protection:	no
With hinged lid:	yes
Mounting type:	Surface-mounted
Text field/labeling area:	yes
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
With fine fuse:	no
Mounting type:	Mounting with screw
Material:	Plastic
Material quality:	Duroplast
Surface finish:	glossy
Device width:	70 mm
Device height:	68 mm
Device depth:	47 mm
With loop-through function:	no
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Transparent:	no
Protective contact:	yes
Protective conductor contact round:	no
Number of active contacts (round):	2
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no

Characteristics

Manufacturer

HAN620NAW

GTIN4011377488403

LockableNo

Antibacterial treatmentNo

Number of Units1

Number of phases1

Number of active contacts (approx.)2

Surface finishGlittering

Ejection mechanismNo

Mounting typeFastening with screw

Color

Residual current protectionNo

Suitable for protection class (IP)IP44

Device width70 mm

Device height68 mm

Device depth47 mm

Halogen freeYes

With loop-through functionNo

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidYes

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionNo

Mounting typeSurface-mounted

Nominal voltage250V

Rated current16A

RAL number (similar)7035

Protective contactYes

Protective conductor contact roundNo

Special power supplyWithout special power supply

Text field/label areaYes

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityDuroplast

Overvoltage protectionNo

Jung 620NAW SCHUKO® socket, 16 A 250 V ~, with label field, IP 44, WG 600

Price on request

€11.01

€0

Into a basketIn the basketGo
