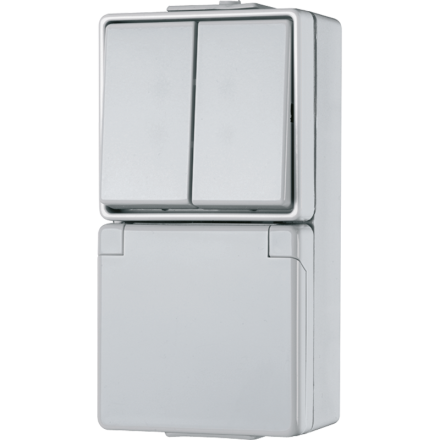

Jung 675W SCHUKO® socket 16 A 250 V ~ with series switch 10 AX 250 V ~, 16 A 250 V ~, IP 44, WG 600

In stock

SKU: 136795

Price on request

€35.58

€0

Overview

SCHUKO® socket 16 A 250 V ~ with series switch 10 AX 250 V ~, 16 A 250 V ~, IP 44, WG 600 with spring terminals for rigid conductors up to 2.5 mm2
Connection terminals in accordance with DIN VDE 0620 or DIN VDE 0632 (EN 60669)
Housing 70 x 140 x 47 mm, 2 cable entries
Switch in OFF position can be illuminated by lamp Art. No.: 99 (230 V).

Property	Value
Color:	gray
Socket design:	SCHUKO
Number of sockets:	1
Switch design:	Series switch
Suitable for protection class (IP):	IP44
Socket rated current:	16 A
Nominal voltage:	250 V
Mounting type:	Surface-mounted
Halogen-free:	yes
Operating method:	Rocker/button
Mounting direction:	vertical
Fastening type:	Fastening with screw
With lighting:	no
Material:	Plastic
Material quality:	Duroplast
Surface:	other
Surface finish:	glossy
RAL number (similar) :	7035
Residual current protection:	no
Device width:	70 mm
Device height:	140 mm
Device depth:	47 mm
With fine fuse:	no
Transparent:	no
Overvoltage protection:	no
