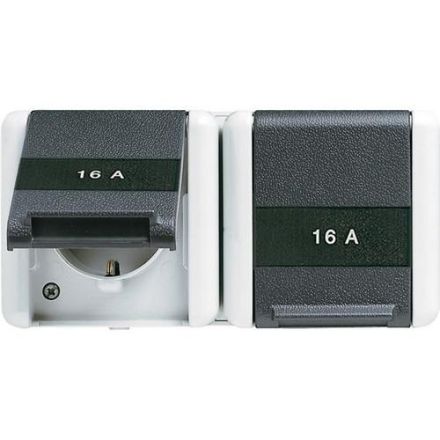

Jung 8220KINAW SCHUKO® double socket, 4 cable entries, 2 individual covers with integrated increased contact protection, 16 A 250 V ~, with label field, int

Jung 8220KINAW SCHUKO® double socket, 4 cable entries, 2 individual covers with integrated increased contact protection, 16 A 250 V ~, with label field, int

In stock

SKU: 136816

Price on request

€30.67

€0

Overview

SCHUKO® double socket, 4 cable entries, 2 individual covers with integrated increased contact protection, 16 A 250 V ~, with label field, int wired
with two label fields 22 x 48 mm
with spring terminals for rigid conductors up to 2.5 mm2
Connection terminals according to DIN VDE 0620

Property	Value
RAL number (similar):	7035
Number of units:	2
Color:	gray
Suitable for protection class (IP):	IP44
Nominal voltage:	250 V
Nominal current:	16 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	yes
Mounting type:	Surface-mounted
Text field/labeling area:	yes
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
With fine fuse:	no
Mounting type:	Mounting with screw
Material:	Plastic
Material quality:	Thermoplastic
Surface finish:	glossy
Device width:	151 mm
Device height:	75 mm
Device depth:	58 mm
With loop-through function:	no
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Transparent:	no
Protective contact:	yes
Protective conductor contact round:	no
Number of active contacts (round):	2
With signal lamp:	no
Number of Phases:	1
Antibacterial treatment:	no

Characteristics

Manufacturer

HAN8220KINAW

GTIN4011377084377

LockableNo

Antibacterial treatmentNo

Number of Units2

Number of phases1

Number of active contacts (approx.)2

Surface finishGlittering

Ejection mechanismNo

Mounting typeFastening with screw

Color

Residual current protectionNo

Suitable for protection class (IP)IP44

Device width151 mm

Device height75 mm

Device depth58 mm

Halogen freeYes

With loop-through functionNo

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidYes

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeSurface-mounted

Nominal voltage250V

Rated current16A

RAL number (similar)7035

Protective contactYes

Protective conductor contact roundNo

Special power supplyWithout special power supply

Text field/label areaYes

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo

Jung 8220KINAW SCHUKO® double socket, 4 cable entries, 2 individual covers with integrated increased contact protection, 16 A 250 V ~, with label field, int

Price on request

€30.67

€0
