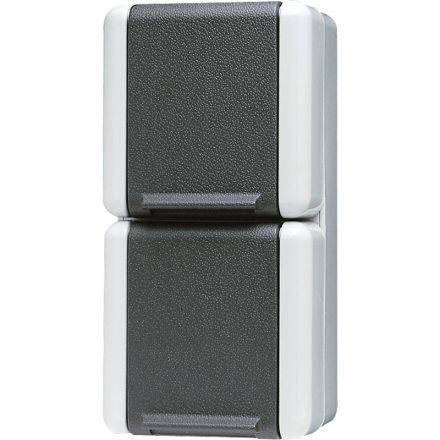

Jung 822W SCHUKO® double socket, 2 cable entries, 2 individual covers, 16 A 250 V ~, hinged cover, vertical, IP 44, WG 800

Jung 822W SCHUKO® double socket, 2 cable entries, 2 individual covers, 16 A 250 V ~, hinged cover, vertical, IP 44, WG 800

In stock

SKU: 136823

Price on request

€20.95

€0

Overview

SCHUKO® double socket, 2 cable entries, 2 individual covers, 16 A 250 V ~, hinged lid, vertical, IP 44, WG 800 wired
with spring terminals for rigid conductors up to 2.5 mm2
connection terminals in accordance with DIN VDE 0620
all 4 entries suitable for cable duct slider item no.: 895

Property	Value
RAL number (similar):	7035
Number of units:	2
Color:	gray
Suitable for protection class (IP):	IP44
Nominal voltage:	250 V
Nominal current:	16 A
Lockable:	no
With increased contact protection:	no
With hinged lid:	yes
Mounting type:	Surface-mounted
Text field/labeling area:	no
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
With fine fuse:	no
Mounting type:	Mounting with screw
Material:	Plastic
Material quality:	Thermoplastic
Surface finish:	glossy
Device width:	151 mm
Device height:	75 mm
Device depth:	58 mm
With loop-through function:	no
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Transparent:	no
Protective contact:	yes
Round protective conductor contact:	no
Number of active contacts (round):	2
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no

Characteristics

Waterproof socketYes

Manufacturer

HAN822W

GTIN4011377657908

LockableNo

Antibacterial treatmentNo

Number of Units2

Number of phases1

Number of active contacts (approx.)2

Surface finishGlittering

Ejection mechanismNo

Mounting typeFastening with screw

Color

Residual current protectionNo

Suitable for protection class (IP)IP44

Device width151 mm

Device height75 mm

Device depth58 mm

Halogen freeYes

With loop-through functionNo

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidYes

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionNo

Mounting typeSurface-mounted

Nominal voltage250V

Rated current16A

RAL number (similar)7035

Protective contactYes

Protective conductor contact roundNo

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
