Jung A1520BFKINASWM SCHUKO socket, 16 A 250 V ~, with label field, integrated increased contact protection, SAFETY+, thermoplastic painted, series A, graphite black matt

Jung A1520BFKINASWM SCHUKO socket, 16 A 250 V ~, with label field, integrated increased contact protection, SAFETY+, thermoplastic painted, series A, graphite black matt

In stock

SKU: 709790

Price on request

€13.34

€0

Overview

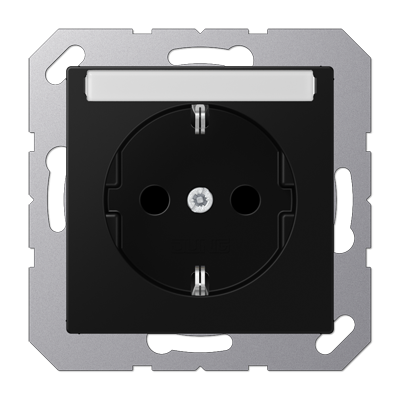

SCHUKO socket, 16 A 250 V ~, with label field, integrated increased contact protection, SAFETY+, thermoplastic painted, series A, graphite black matt SCHUKO® socket, graphite black matt
with integrated increased contact protection (Safety Plus)
with label field 6 x 46 mm
with spring terminals for rigid and untreated flexible conductors up to 2.5 mm2
Connection terminals according to DIN VDE 0620
Support ring, claws and claw screws are integrated into the protective measure via an earthing rail.
Material: thermoplastic painted
Dimensions (W x H): 55 x 55 mm

Property	Value
Number of units:	1
Color:	black
Suitable for protection class (IP):	IP20
Rated voltage:	250 V
Rated current:	16 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	yes
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	Plug-in terminal
With fine fuse:	no
Mounting type:	claw/screw fastening
Material:	plastic
Material quality:	thermoplastic
Surface finish:	matt
Device width:	55 mm
Device height:	55 mm
Device depth:	29.5 mm
With Loop-through function:	no
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Transparent:	no
Protective contact:	yes
Round protective conductor contact:	no
Number of active contacts (round):	2
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no

Characteristics

ColorBlack

HABA1520BFKINASWM with label field 6x46mm

Manufacturer

HANA1520BFKINASWM

GTIN4011377189102

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units1

Number of phases1

Number of active contacts (approx.)2

Surface finishFrosted

Ejection mechanismNo

Mounting typeClaw/screw fastening

Color

Residual current protectionNo

Suitable for protection class (IP)IP20

Device width55 mm

Device height55 mm

Device depth29.5 mm

Halogen freeYes

With loop-through functionNo

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeFlush-mounted

Nominal voltage250V

Rated current16A

Protective contactYes

Protective conductor contact roundNo

Special power supplyWithout special power supply

Text field/label areaYes

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
