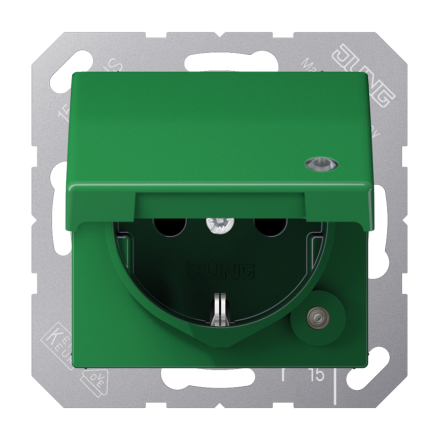

Jung A1520BFKLKOGN SCHUKO socket, 16 A 250 V ~, with function display, integrated increased contact protection, SAFETY+, hinged lid, thermoplastic, series A, green (for SV

SCHUKO socket, 16 A 250 V ~, with function display, integrated increased contact protection, SAFETY+, hinged lid, thermoplastic, series A, green (for SV SCHUKO® socket, green (for SV)
with hinged lid (with return spring)
with function display (green LED) Item no.: 193-LED GN (according to DIN VDE 0100 Part 710.55.3)
with integrated increased contact protection (Safety Plus)
with spring terminals for rigid and untreated flexible conductors up to 2.5 mm2
Connection terminals according to DIN VDE 0620
Support ring, claws and claw screws are integrated into the protective measure via an earthing rail.
Function display can be replaced from the front without interrupting the voltage
Material: thermoplastic
Dimensions (W x H): 55 x 55 mm
