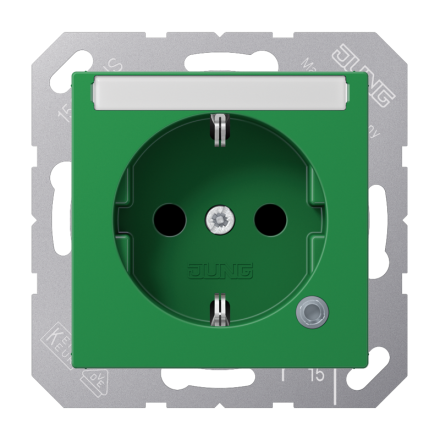

Jung A1520BFNAKOGN SCHUKO socket, without claws, with function display, with label field, integrated increased contact protection

Jung A1520BFNAKOGN SCHUKO socket, without claws, with function display, with label field, integrated increased contact protection

In stock

SKU: 237346

Price on request

€21.88

€0

Overview

SCHUKO socket, 16 A 250 V ~, without claws, with function display, with label field, integrated increased contact protection, SAFETY+, thermoplastic, Ser SCHUKO® socket, green (for SV)
with function display (green LED) Item no.: 193-LED GN (according to DIN0100 Part 710.55.3)
with integrated increased contact protection (Safety Plus)
with label field 6 x 46 mm
with spring terminals for rigid and untreated flexible conductors up to 2.5 mm2
Connection terminals according to DIN0620
Support ring, claws and claw screws are integrated into the protective measure via an earthing rail.
Function display can be replaced from the front without interrupting the voltage
Material: thermoplastic
Dimensions (W x H): 55 x 55 mm

Property	Value
RAL number (similar):	6029
Number of units:	1
Color:	green
Suitable for protection class (IP):	IP20
Rated voltage:	250 V
Rated current:	16 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	yes
Ejection mechanism:	no
Halogen-free:	yes
Surge protection:	no
Residual current protection:	no
Special power supply:	Safety supply (green)
Twisted central insert:	no
Connection type:	Plug terminal
With fine fuse:	no
Fastening type:	Claw/screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Surface finish:	glossy
Device width:	55 mm
Device height:	55 mm
Device depth:	29.5 mm
With loop-through function:	no
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	yes
With orientation lighting:	no
Transparent:	no
Protective contact:	yes
Protective conductor contact round:	no
Number of active contacts (round):	2
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no

Characteristics

HABA1520BFNAKOGN

Manufacturer

HANA1520BFNAKOGN

GTIN4011377158436

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units1

Number of phases1

Number of active contacts (approx.)2

Surface finishGlittering

Ejection mechanismNo

Mounting typeClaw/screw fastening

Color

Residual current protectionNo

Suitable for protection class (IP)IP20

Device width55 mm

Device height55 mm

Device depth29.5 mm

Halogen freeYes

With loop-through functionNo

With on/off switchNo

With micro fuseNo

With functional lightingYes

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeFlush-mounted

Nominal voltage250V

Rated current16A

RAL number (similar)6029

Protective contactYes

Protective conductor contact roundNo

Special power supplySafety supply (green)

Text field/label areaYes

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
