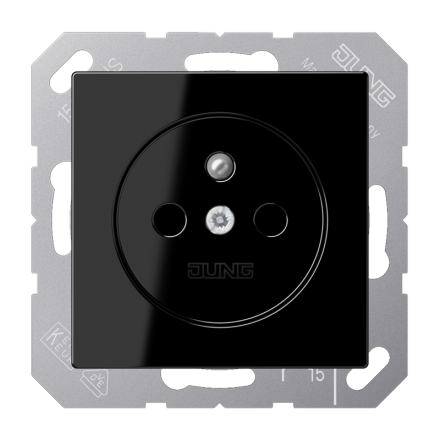

Jung A1521FKISW socket, French/Belgian system, 16 A 250 V ~, screw terminals, integrated increased contact protection, SAFETY+, Duroplast, Series A, black

Jung A1521FKISW socket, French/Belgian system, 16 A 250 V ~, screw terminals, integrated increased contact protection, SAFETY+, Duroplast, Series A, black

In stock

SKU: 182473

Price on request

€11.75

€0

Overview

Socket, French/Belgian system, 16 A 250 V ~, screw terminals, integrated increased contact protection, SAFETY+, Duroplast, Series A, black Socket, French/Belgian system, black
2-pole with earthing pin, 16 A 250 V ~
CEE 7/5
with integrated increased contact protection (Safety Plus)
with screw terminals for rigid and flexible conductors up to 2.5 mm2 according to NFC 61-314
Support ring, claws and claw screws are integrated into the protective measure via an earthing rail.
Material: Duroplast
Dimensions (W x H): 55 x 55 mm

Property	Value
RAL number (similar):	9005
Number of units:	1
Color:	black
Suitable for protection class (IP):	IP20
Rated voltage:	250 V
Rated current:	16 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Ejection mechanism:	no
Halogen-free:	yes
Surge protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	screw terminal
With fine fuse:	no
Fastening type:	claw/screw fastening
Material:	plastic
Material quality:	Duroplast
Surface finish:	glossy
Device width:	55 mm
Device height:	55 mm
With loop-through function:	no
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Transparent:	no
Protective contact:	yes
Round protective conductor contact:	yes
Number of active contacts (round):	2
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no

Characteristics

ColorBlack

HABA 1521 FKI SW

Manufacturer

HANA1521FKISW

GTIN4011377076556

LockableNo

Connection typeScrew terminal

Antibacterial treatmentNo

Number of Units1

Number of phases1

Number of active contacts (approx.)2

Surface finishGlittering

Ejection mechanismNo

Mounting typeClaw/screw fastening

Color

Residual current protectionNo

Suitable for protection class (IP)IP20

Device width55 mm

Device height55 mm

Halogen freeYes

With loop-through functionNo

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeFlush-mounted

Nominal voltage250V

Rated current16A

RAL number (similar)9005

Protective contactYes

Protective conductor contact roundYes

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityDuroplast

Overvoltage protectionNo
