Jung A1569-25NAWEWW cover (latched) for modular jack sockets 2-way, EMT, AMP, MTRJ, with label field, thermoplastic, AS/A series, alpine white

In stock
SKU: 886917
€15.62
Into a basketIn the basketGo

Overview

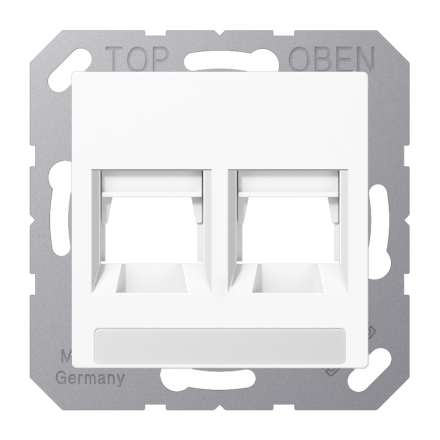

Cover (snapped) for 2-way modular jack sockets, EMT, AMP, MTRJ, with labeling field, thermoplastic, AS/A series, alpine white (complete with supporting ring, screw fastening)
Closing flap with return spring
for modular jack sockets
TE Connectivity (Tyco Electronics / AMP NETCONNECT)
for cable Ø max. 10 mm:
EMT Cat. 5e, 180° Item no. 0-0188650-5
EMT Cat. 5e, 90° Item no. 0-0188650-6
for cable Ø max. 6.5 mm:
EMT Cat. 5e, 180° Item no. 0-0338038-1
EMT Cat. 5e, 90° Item no. 0-0338038-2
Toolless Jack Cat. 3 unshielded: Item no. 0-1116603-x
Toolless Jack Cat. 5e unshielded: Item no. 0-1116604-x,
Toolless Jack Cat. 5e shielded: Item no. 0-1339015-1
Toolless Jack Cat. 6 unshielded: Item no. 0-1116605-x,
Toolless Jack Cat. 6 shielded: Item no. 0-1339016-1
MTRJ-LWL-Jack (fiber optic cable): Item no. 1278414-1, deep box (at least 62 mm) required
for 2 sockets

Property Value
Mounting type: clamp fastening
Color: white
RAL number (similar): 9016
Device height: 55 mm
Device width: 55 mm
Labeling field: with labeling field
Use: Modular jack
With dust protection: yes
Mounting type: Surface-mounted
With hinged lid: no
Suitable for protection class (IP): IP20
Composition: other
Support ring: yes
With print: no
Material: Plastic
Material quality: Thermoplastic
Halogen-free: yes
Surface finish: glossy
With strain relief: no
Lamp terminal: no
Transparent: no
Outlet direction: straight
With Sockets/couplings: no
Suitable for number of sockets/couplings: 2
Housing shielded: no

Characteristics

ColorWhite
Gang2 gang
HABF.MJ 2x NA WE TE-conne.
ManufacturerJung
HANA1569-25NAWEWW
GTIN4011377206779
Surface finishGlittering
Outlet directionStraight
Mounting typeClamp fastening
Label fieldWith label field
ColorWhite
Suitable for number of sockets/couplings2
Suitable for protection class (IP)IP20
Housing shieldedNo
Device width55 mm
Device height55 mm
Halogen freeYes
Lamp terminalNo
With printNo
With bushings/couplingsNo
With hinged lidNo
With dust protectionYes
With strain reliefNo
Mounting typeSurface-mounted
RAL number (similar)9016
Support ringYes
TransparentNo
UseModular Jack
MaterialPlastic
Material qualityThermoplastic
CompilationOther
