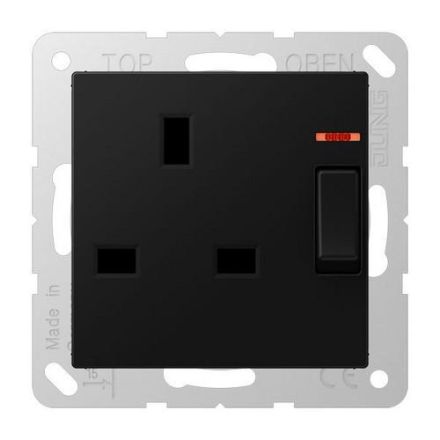

Jung A3171KOSWM Switchable socket with control switch, British Standard, 13 A 250 V ~, screw terminals BS 1363-1, 4 mm2, without claws, with function display, inte

Jung A3171KOSWM Switchable socket with control switch, British Standard, 13 A 250 V ~, screw terminals BS 1363-1, 4 mm2, without claws, with function display, inte

In stock

SKU: 806829

Price on request

€25.99

€0

Overview

Switchable socket with control switch, British Standard, 13 A 250 V ~, screw terminals BS 1363-1, 4 mm2, without claws, with function display, inte 2-pin. + E, with control switch 2-pole.
with integrated increased contact protection
British Standard 1363:1995
with screw terminals for rigid and flexible conductors up to 4 mm2 in accordance with BS 1363-1
Material: painted duroplast

Property	Value
Version:	British Standard
Number of units:	1
Color:	black
Suitable for protection class (IP):	IP20
Nominal voltage:	250 V
Rated current:	13 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	Screw terminal
With fine fuse:	no
Mounting type:	Mounting with screw
Material:	Plastic
Material quality:	Duroplast
Surface finish:	matt
Number of switchable sockets:	1
Device width:	55 mm
Device height:	55 mm
With loop-through function:	no
With on/off switch:	yes
With built-in USB power supply:	no
With function lighting:	yes
With orientation lighting:	no
Transparent:	no
Protective contact:	yes
Round protective conductor contact:	yes
Number of active contacts (round):	2
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no

Characteristics

HABA3171KOSWM switchable 13A 250 V

Manufacturer

HANA3171KOSWM

GTIN4011377205246

LockableNo

Connection typeScrew terminal

Antibacterial treatmentNo

Number of Units1

Number of phases1

Number of active contacts (approx.)2

Version

Surface finishFrosted

Ejection mechanismNo

Mounting typeFastening with screw

Color

Residual current protectionNo

Suitable for protection class (IP)IP20

Device width55 mm

Device height55 mm

Halogen freeYes

With loop-through functionNo

With on/off switchYes

With micro fuseNo

With functional lightingYes

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeFlush-mounted

Nominal voltage250V

Rated current13 A

Protective contactYes

Protective conductor contact roundYes

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityDuroplast

Overvoltage protectionNo
