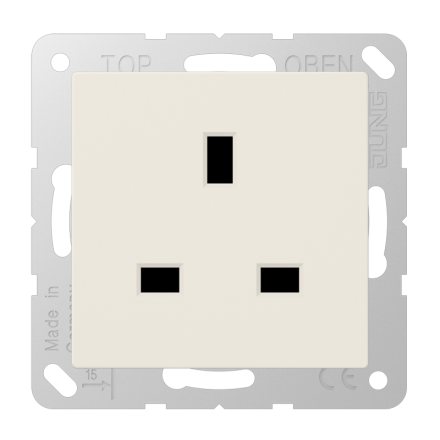

Jung A3521 socket, 13 A 250 V ~, screw terminals BS 1363-1, 4 mm2, without claws, integrated increased contact protection, SAFETY+, Duroplast, AS series, white

Jung A3521 socket, 13 A 250 V ~, screw terminals BS 1363-1, 4 mm2, without claws, integrated increased contact protection, SAFETY+, Duroplast, AS series, white

In stock

SKU: 136906

Price on request

€16.56

€0

Overview

Socket, 13 A 250 V ~, screw terminals BS 1363-1, 4 mm2, without claws, integrated increased contact protection, SAFETY+, Duroplast, AS series, white 2-pin. + E, with integrated increased contact protection
British Standard 1363
with screw terminals for rigid and flexible conductors up to 4 mm2 according to BS 1363-1
Material: Duroplast

Property	Value
Version:	British Standard
RAL number (similar):	1013
Number of units:	1
Color:	white
Suitable for protection class (IP):	IP20
Nominal voltage:	250 V
Nominal current:	13 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	Screw terminal
With fine fuse:	no
Mounting type:	Mounting with screw
Material:	Plastic
Material quality:	Duroplast
Surface finish:	glossy
Device width:	55 mm
Device height:	55 mm
With loop-through function:	no
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Transparent:	no
Protective contact:	yes
Round protective conductor contact:	yes
Number of active contacts (round):	2
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no

Characteristics

ColorWhite

Manufacturer

HANA3521

GTIN4011377113442

LockableNo

Connection typeScrew terminal

Antibacterial treatmentNo

Number of Units1

Number of phases1

Number of active contacts (approx.)2

Version

Surface finishGlittering

Ejection mechanismNo

Mounting typeFastening with screw

Color

Residual current protectionNo

Suitable for protection class (IP)IP20

Device width55 mm

Device height55 mm

Halogen freeYes

With loop-through functionNo

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeFlush-mounted

Nominal voltage250V

Rated current13 A

RAL number (similar)1013

Protective contactYes

Protective conductor contact roundYes

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityDuroplast

Overvoltage protectionNo

Jung A3521 socket, 13 A 250 V ~, screw terminals BS 1363-1, 4 mm2, without claws, integrated increased contact protection, SAFETY+, Duroplast, AS series, white

Price on request

€16.56

€0

Into a basketIn the basketGo
