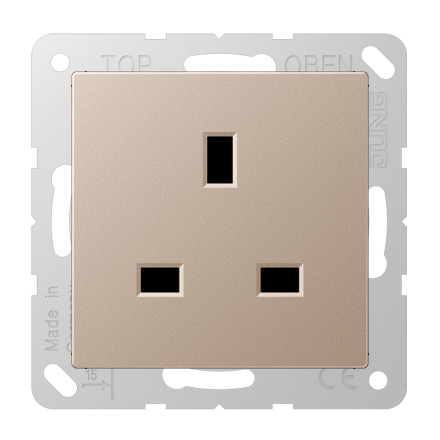

Jung A3521CH socket, 13 A 250 V ~, screw terminals BS 1363-1, 4 mm2, without claws, integrated increased contact protection, SAFETY+, Series A, champagne

Jung A3521CH socket, 13 A 250 V ~, screw terminals BS 1363-1, 4 mm2, without claws, integrated increased contact protection, SAFETY+, Series A, champagne

In stock

SKU: 136908

Price on request

€22.25

€0

Overview

Socket, 13 A 250 V ~, screw terminals BS 1363-1, 4 mm2, without claws, integrated increased contact protection, SAFETY+, Series A, champagne 2-pin. + E, with integrated increased contact protection
British Standard 1363
with screw terminals for rigid and flexible conductors up to 4 mm2 according to BS 1363-1
Material: painted duroplast

Property	Value
Version:	British Standard
Number of units:	1
Color:	other
Suitable for protection class (IP):	IP20
Nominal voltage:	250 V
Nominal current:	13 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	screw terminal
With fine fuse:	no
Mounting type:	Mounting with screw
Material:	plastic
Material quality:	Duroplast
Surface finish:	matt
Device width:	55 mm
Device height:	55 mm
With loop-through function:	no
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Transparent:	no
Protective contact:	yes
Protective conductor contact round:	yes
Number of active contacts (round):	2
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no

Characteristics

Manufacturer

HANA3521CH

GTIN4011377117808

LockableNo

Connection typeScrew terminal

Antibacterial treatmentNo

Number of Units1

Number of phases1

Number of active contacts (approx.)2

Version

Surface finishFrosted

Ejection mechanismNo

Mounting typeFastening with screw

Color

Residual current protectionNo

Suitable for protection class (IP)IP20

Device width55 mm

Device height55 mm

Halogen freeYes

With loop-through functionNo

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeFlush-mounted

Nominal voltage250V

Rated current13 A

Protective contactYes

Protective conductor contact roundYes

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityDuroplast

Overvoltage protectionNo
