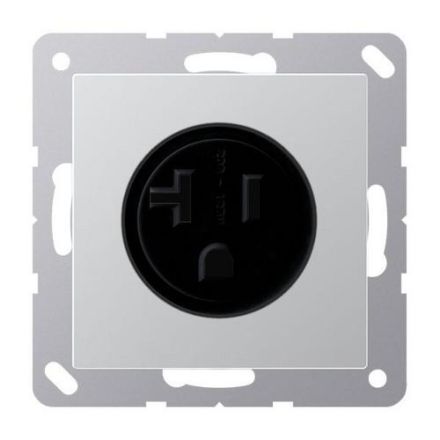

Jung A521-20AL socket, US standard NEMA, 20 A 125 V ~, screw terminals, without claws, thermoplastic painted, series A, aluminum

Jung A521-20AL socket, US standard NEMA, 20 A 125 V ~, screw terminals, without claws, thermoplastic painted, series A, aluminum

In stock

SKU: 137003

Price on request

€41.58

€0

Overview

Socket, US standard NEMA, 20 A 125 V ~, screw terminals, without claws, thermoplastic painted, series A, aluminum 20 A, 125 V ~, 5-20R, 2-pin. + E
with screw terminals for rigid and flexible conductors up to 4 mm2 according to US-NEMA
Material: painted thermoplastic

Property	Value
Number of units:	1
Color:	Aluminum
Suitable for protection class (IP):	IP20
Rated voltage:	125 V
Rated current:	20 A
Lockable:	no
With increased contact protection:	no
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Ejection mechanism:	no
Halogen-free:	yes
Surge protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	screw terminal
With fine fuse:	no
Fastening type:	Fastening with screw
Material:	Plastic
Material quality:	Thermoplastic
Surface finish:	matt
Device width:	55 mm
Device height:	55 mm
With loop-through function:	no
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Transparent:	no
Protective contact:	yes
Protective conductor contact round:	yes
Number of active contacts (round):	2
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no

Characteristics

Manufacturer

HANA521-20AL

GTIN4011377142657

LockableNo

Connection typeScrew terminal

Antibacterial treatmentNo

Number of Units1

Number of phases1

Number of active contacts (approx.)2

Surface finishFrosted

Ejection mechanismNo

Mounting typeFastening with screw

Color

Residual current protectionNo

Suitable for protection class (IP)IP20

Device width55 mm

Device height55 mm

Halogen freeYes

With loop-through functionNo

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionNo

Mounting typeFlush-mounted

Nominal voltage125V

Rated current20A

Protective contactYes

Protective conductor contact roundYes

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo

Jung A521-20AL socket, US standard NEMA, 20 A 125 V ~, screw terminals, without claws, thermoplastic painted, series A, aluminum

Price on request

€41.58

€0
