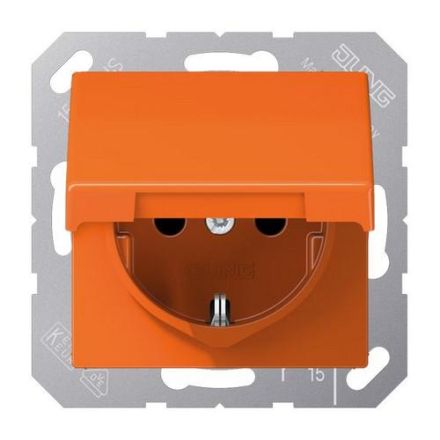

Jung ABAS1520KIKLO SCHUKO socket, 16 A 250 V ~, integrated increased contact protection, SAFETY+, hinged lid, thermoplastic antibacterial, AS series, orange (for ZSV)

In stock
SKU: 182683
€21.85
Into a basketIn the basketGo

Overview

SCHUKO socket, 16 A 250 V ~, integrated increased contact protection, SAFETY+, hinged lid, antibacterial thermoplastic, AS series, orange (for ZSV) SCHUKO® socket, orange (for ZSV)
with hinged lid (with return spring)
with integrated increased contact protection (Safety Plus)
with spring terminals for rigid and untreated flexible conductors up to 2.5 mm2
Connection terminals in accordance with DIN VDE 0620
Support ring, claws and claw screws are integrated into the protective measure via an earthing rail.
Material: antibacterial thermoplastic
Dimensions (W x H): 55 x 55 mm

Property Value
RAL number (similar): 2004
Number of units: 1
Color: orange
Suitable for protection class (IP): IP44
Rated voltage: 250 V
Rated current: 16 A
Lockable: no
With increased contact protection: yes
With hinged lid: yes
Mounting type: Flush-mounted
Text field/labeling area: no
Ejection mechanism: no
Halogen-free: yes
Overvoltage protection: no
Residual current protection: no
Special power supply: additional safety supply (orange)
Twisted central insert: no
Connection type: Plug terminal
With fine fuse: no
Mounting type: Claw/screw fastening
Material: Plastic
Material quality: Thermoplastic
Surface finish: glossy
Device width: 55 mm
Device height: 55 mm
With loop-through function: no
With on/off switch: no
With built-in USB power supply: no
With function lighting: no
With orientation lighting: no
Transparent: no
Protective contact: yes
Round protective conductor contact: no
Number of active contacts (round): 2
With signal lamp: no
Number of phases: 1
Antibacterial treatment: yes

Characteristics

Waterproof socketYes
HABABAS1520KIKLO
ManufacturerJung
HANABAS1520KIKLO
GTIN4011377146327
LockableNo
Connection typePlug-in terminal
Antibacterial treatmentYes
Number of Units1
Number of phases1
Number of active contacts (approx.)2
Surface finishGlittering
Ejection mechanismNo
Mounting typeClaw/screw fastening
ColorOrange
Residual current protectionNo
Suitable for protection class (IP)IP44
Device width55 mm
Device height55 mm
Halogen freeYes
With loop-through functionNo
With on/off switchNo
With micro fuseNo
With functional lightingNo
With hinged lidYes
With orientation lightingNo
With signal lampNo
With built-in USB power supplyNo
With increased contact protectionYes
Mounting typeFlush-mounted
Nominal voltage250V
Rated current16A
RAL number (similar)2004
Protective contactYes
Protective conductor contact roundNo
Special power supplyAdditional safety supply (orange)
Text field/label areaNo
TransparentNo
Twisted central insertNo
MaterialPlastic
Material qualityThermoplastic
Overvoltage protectionNo
