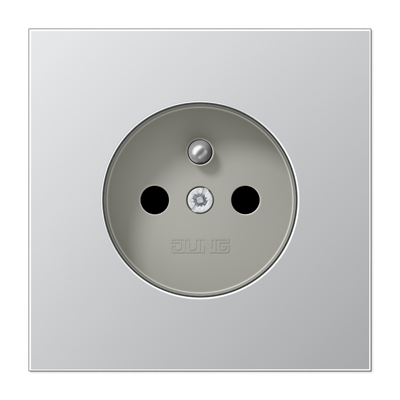

Jung AL1520FKI socket, French/Belgian system, 16 A 250 V ~, without claws, integrated increased contact protection, SAFETY+, LS series, aluminum

In stock
SKU: 182477
€19.32
Into a basketIn the basketGo

Overview

Socket, French/Belgian system, 16 A 250 V ~, without claws, integrated increased contact protection, SAFETY+, LS series, aluminum Socket, French/Belgian system, aluminum
2-pole with earthing pin, 16 A 250 V ~
CEE 7/5
with integrated increased contact protection (Safety Plus)
with spring terminals for rigid and untreated flexible conductors up to 2.5 mm2
Support ring, claws and claw screws are integrated into the protective measure via an earthing rail.
Material: aluminum AlMg1 natural tone, matt stained
Dimensions (W x H): 70 x 70 mm

Property Value
Number of units: 1
Color: Aluminum
Suitable for protection class (IP): IP20
Rated voltage: 250 V
Rated current: 16 A
Lockable: no
With increased contact protection: yes
With hinged lid: no
Mounting type: Flush-mounted
Text field/labeling area: no
Ejection mechanism: no
Halogen-free: yes
Overvoltage protection: no
Residual current protection: no
Special power supply: without special power supply
Twisted central insert: no
Connection type: Plug-in terminal
With fine fuse: no
Mounting type: Claw/screw fastening
Material: Metal
Material quality: Aluminium
Surface finish: matt
Device width: 70 mm
Device height: 70 mm
With loop-through function: no
With on/off switch: no
With built-in USB power supply: no
With function lighting: no
With orientation lighting: no
Transparent: no
Protective contact: yes
Protective conductor contact round: yes
Number of active contacts (round): 2
With signal lamp: no
Number of phases: 1
Antibacterial treatment: no

Characteristics

HABAL1520FKI
ManufacturerJung
HANAL1520FKI
GTIN4011377077461
LockableNo
Connection typePlug-in terminal
Antibacterial treatmentNo
Number of Units1
Number of phases1
Number of active contacts (approx.)2
Surface finishFrosted
Ejection mechanismNo
Mounting typeClaw/screw fastening
Residual current protectionNo
Suitable for protection class (IP)IP20
Device width70 mm
Device height70 mm
Halogen freeYes
With loop-through functionNo
With on/off switchNo
With micro fuseNo
With functional lightingNo
With hinged lidNo
With orientation lightingNo
With signal lampNo
With built-in USB power supplyNo
With increased contact protectionYes
Mounting typeFlush-mounted
Nominal voltage250V
Rated current16A
Protective contactYes
Protective conductor contact roundYes
Special power supplyWithout special power supply
Text field/label areaNo
TransparentNo
Twisted central insertNo
MaterialMetal
Material qualityAluminum
Overvoltage protectionNo
