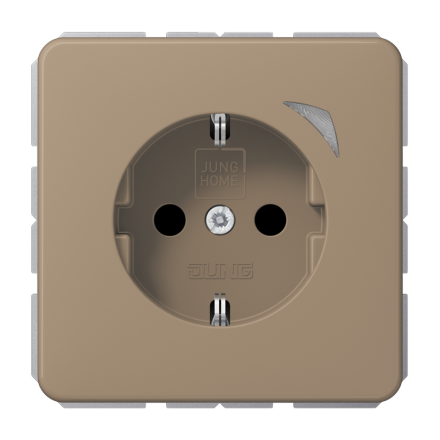

Jung BTCD1521SEGB SCHUKO socket, 16 A 250 V ~, screw terminals, with function display, integrated increased contact protection, SAFETY+, anodised aluminium, CD series, g

SCHUKO socket, 16 A 250 V ~, screw terminals, with function display, integrated increased contact protection, SAFETY+, anodized aluminum, CD series, g SCHUKO® socket, gold-bronze
with integrated increased contact protection (Safety Plus)
with screw terminals for rigid and flexible conductors up to 2.5 mm2
Connection terminals in accordance with DIN VDE 0620
Support ring, claws and claw screws are integrated into the protective measure via an earthing rail.
Intended use
Manual or automatic switching of lighting and standard household devices
Power (W) and energy measurement (kWh) of the connected devices
Wireless connection with devices from the JUNG HOME system
Use in dry indoor areas
Installation in device box with dimensions in accordance with DIN 49073
Depth of the device box (internal dimensions): min. 53 mm

Product features
Commissioning and operation via JUNG HOME app with mobile device (smartphone or tablet) via Bluetooth®
Button for switching and commissioning
Multi-coloured status display with optional night mode
Locking of local operation
Up to 16 time programs
Follow-up time
Automatic summer/winter time changeover
Activate/deactivate automatic operation via JUNG HOME app
Automatic date and time update when connected to smartphone
Integrated switching actuator with 16 A
Integration of the local actuator in groups, central functions and scenes
Power measurement from 0.1 to 3650 watts
Recording of the energy history for the last 24 hours and the last 31 days (charting)
Operating hour counter, period of energy measurement
Power save function (switching off Standby consumers)
Master-slave function (switch on a wirelessly linked consumer depending on the connected consumer)
Overcurrent protection shutdown
Bluetooth® SIG Mesh for fully encrypted wireless communication and repeater function
Can be updated via JUNG HOME app

Available via update in the future:
(Information on updates and dates can be found at www.jung.de/JUNGHOME)
Switch the socket to permanently ON or permanently OFF using locking functions
Time programs with sunrise or sunset (astro function)
Time programs with random time
Switch on/off delay
Material: anodized aluminum
Dimensions (W x H): 55 x 55 mm
