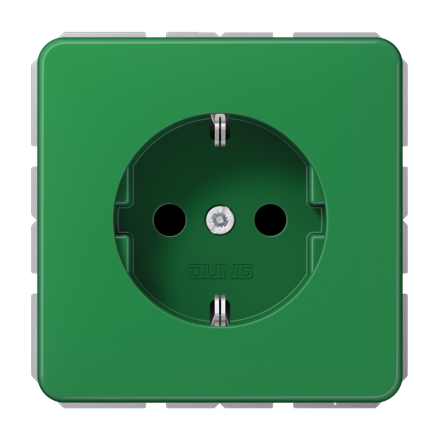

Jung CD1520BFKIGN SCHUKO socket, 16 A 250 V ~, integrated increased contact protection, SAFETY+, thermoplastic, CD series, green (for SV)

In stock
SKU: 137312
€11.52
Into a basketIn the basketGo

Overview

SCHUKO socket, 16 A 250 V ~, integrated increased contact protection, SAFETY+, thermoplastic, CD series, green (for SV) SCHUKO® socket, green (for SV)
with integrated increased contact protection (Safety Plus)
with spring terminals for rigid and untreated flexible conductors up to 2.5 mm2
Connection terminals in accordance with DIN VDE 0620
Support ring, claws and claw screws are integrated into the protective measure via an earthing rail.
Material: thermoplastic
Dimensions (W x H): 67 x 67 mm

Property Value
RAL number (similar): 6029
Number of units: 1
Color: green
Suitable for protection class (IP): IP20
Rated voltage: 250 V
Rated current: 16 A
Lockable: no
With increased contact protection: yes
With hinged lid: no
Mounting type: Flush-mounted
Text field/labeling area: no
Ejection mechanism: no
Halogen-free: yes
Overvoltage protection: no
Residual current protection: no
Special power supply: Safety supply (green)
Twisted central insert: no
Connection type: Plug-in terminal
With fine fuse: no
Mounting type: Claw/screw fastening
Material: Plastic
Material quality: Thermoplastic
Surface finish: glossy
Device width: 67 mm
Device height: 67 mm
With loop-through function: no
With on/off switch: no
With built-in USB power supply: no
With function lighting: no
With orientation lighting: no
Transparent: no
Protective contact: yes
Protective conductor contact round: no
Number of active contacts (round): 2
With signal lamp: no
Number of phases: 1
Antibacterial treatment: no

Characteristics

ManufacturerJung
HANCD1520BFKIGN
GTIN4011377061262
LockableNo
Connection typePlug-in terminal
Antibacterial treatmentNo
Number of Units1
Number of phases1
Number of active contacts (approx.)2
Surface finishGlittering
Ejection mechanismNo
Mounting typeClaw/screw fastening
ColorGreen
Residual current protectionNo
Suitable for protection class (IP)IP20
Device width67 mm
Device height67 mm
Halogen freeYes
With loop-through functionNo
With on/off switchNo
With micro fuseNo
With functional lightingNo
With hinged lidNo
With orientation lightingNo
With signal lampNo
With built-in USB power supplyNo
With increased contact protectionYes
Mounting typeFlush-mounted
Nominal voltage250V
Rated current16A
RAL number (similar)6029
Protective contactYes
Protective conductor contact roundNo
Special power supplySafety supply (green)
Text field/label areaNo
TransparentNo
Twisted central insertNo
MaterialPlastic
Material qualityThermoplastic
Overvoltage protectionNo
