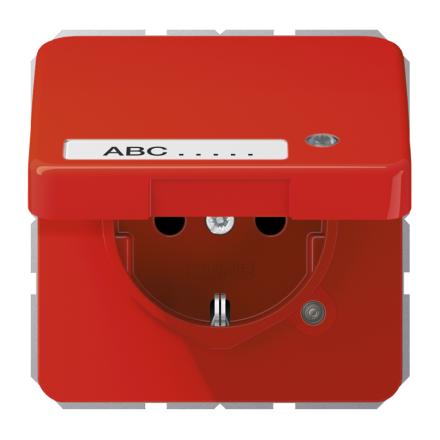

Jung CD1520NAKLKORT SCHUKO socket, 16 A 250 V ~, without claws, with function display, with label field, integrated increased contact protection, SAFETY+, hinged lid, The

SCHUKO socket, 16 A 250 V ~, without claws, with function display, with label field, integrated increased contact protection, SAFETY+, hinged lid, The SCHUKO® socket, red
with hinged lid (with return spring)
with label field 9 x 39 mm
with function display (green LED) Item no.: 193-LED GN (according to DIN VDE 0100 Part 710.55.3)
with integrated increased contact protection (Safety Plus)
with spring terminals for rigid and untreated flexible conductors up to 2.5 mm2
Connection terminals according to DIN VDE 0620
Support ring, claws and claw screws are integrated into the protective measure via an earthing rail.
Function display can be replaced from the front without interrupting the voltage
Material: Thermoplastic
Dimensions (W x H): 67 x 67 mm
