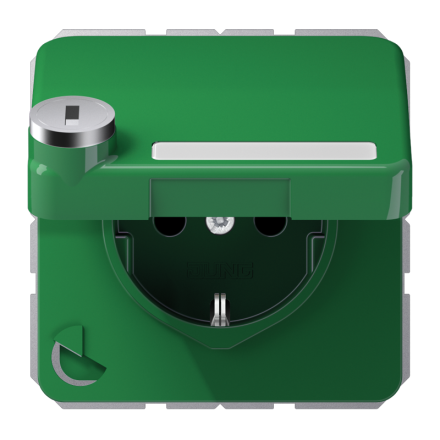

Jung CD1520NAKLSLGN SCHUKO socket, 16 A 250 V ~, integrated increased contact protection, SAFETY+, hinged lid, with safety lock, thermoplastic, CD series, green (for

SCHUKO socket, 16 A 250 V ~, integrated increased contact protection, SAFETY+, hinged lid, with safety lock, thermoplastic, CD series, green (for SCHUKO® socket, green (for SV)
with hinged lid (with return spring)
with label field 9 x 39 mm
with safety lock (24 different closures)
with integrated increased contact protection (Safety Plus)
with spring terminals for rigid and untreated flexible conductors up to 2.5 mm2
Connection terminals in accordance with DIN VDE 0620
Support ring, claws and claw screws are integrated into the protective measure via an earthing rail.
Material: thermoplastic
Dimensions (W x H): 67 x 67 mm
