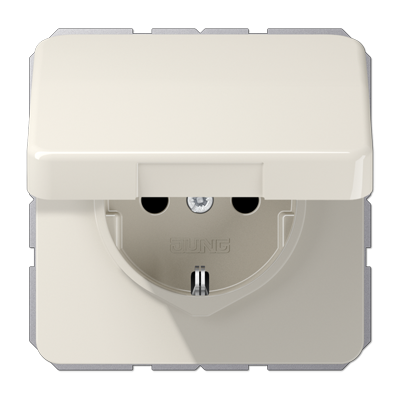

SCHUKO socket, 16 A 250 V ~, screw terminals, without claws, hinged lid, thermoplastic, CD series, white SCHUKO® socket, white
with hinged lid (with return spring)
with screw terminals for rigid and flexible conductors up to 2.5 mm2
Connection terminals in accordance with DIN VDE 0620
without 'fastening claw': Item no. with 'N', e.g. ..1521 N..
Support ring, claws and claw screws are integrated into the protective measure via an earthing rail.
Material: Thermoplastic
Dimensions (W x H): 67 x 67 mm
| Property | Value |
| RAL number (similar): | 1013 |
| Number of units: | 1 |
| Color: | white |
| Suitable for protection class (IP): | IP44 |
| Nominal voltage: | 250 V |
| Rated current: | 16 A |
| Lockable: | no |
| With increased contact protection: | no |
| With hinged lid: | yes |
| Mounting type: | Flush-mounted |
| Text field/labeling area: | no |
| Ejection mechanism: | no |
| Halogen-free: | yes |
| Overvoltage protection: | no |
| Residual current protection: | no |
| Special power supply: | without special power supply |
| Twisted central insert: | no |
| Connection type: | Screw terminal |
| With fine fuse: | no |
| Mounting type: | Claw/screw fastening |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Surface finish: | glossy |
| Device width: | 67 mm |
| Device height: | 67 mm |
| With loop-through function: | no |
| With on/off switch: | no |
| With built-in USB power supply: | no |
| With function lighting: | no |
| With orientation lighting: | no |
| Transparent: | no |
| Protective contact: | yes |
| Protective conductor contact round: | no |
| Number of active contacts (round): | 2 |
| With signal lamp: | no |
| Number of phases: | 1 |
| Antibacterial treatment: | no |
