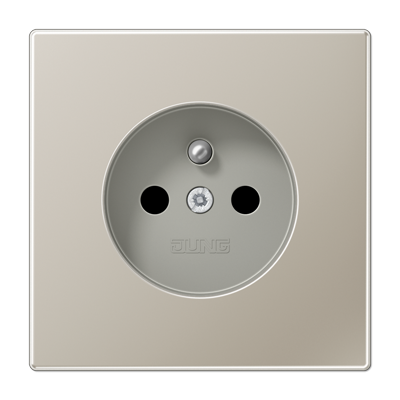

Jung ES1520FKI socket, French/Belgian system, 16 A 250 V ~, without claws, integrated increased contact protection, SAFETY+, LS series, stainless steel

Jung ES1520FKI socket, French/Belgian system, 16 A 250 V ~, without claws, integrated increased contact protection, SAFETY+, LS series, stainless steel

In stock

SKU: 182491

Price on request

€19.32

€0

Overview

Socket, French/Belgian system, 16 A 250 V ~, without claws, integrated increased contact protection, SAFETY+, LS series, stainless steel Socket, French/Belgian system, stainless steel
2-pole with earthing pin, 16 A 250 V ~
CEE 7/5
with integrated increased contact protection (Safety Plus)
with spring terminals for rigid and untreated flexible conductors up to 2.5 mm2
Support ring, claws and claw screws are integrated into the protective measure via an earthing rail.
Material: stainless steel 1.4303 X4 CrNi 18-12
Dimensions (W x H): 70 x 70 mm

Property	Value
Number of Units:	1
Color:	Stainless steel
Suitable for protection class (IP):	IP20
Rated voltage:	250 V
Rated current:	16 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	Plug-in terminal
With fine fuse:	no
Fastening type:	Claw/screw fastening
Material:	Metal
Material quality:	Stainless steel
Surface finish:	matt
Device width:	70 mm
Device height:	70 mm
With Loop-through function:	no
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Transparent:	no
Protective contact:	yes
Round protective conductor contact:	yes
Number of active contacts (round):	2
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no

Characteristics

HABES1520FKI

Manufacturer

HANES1520FKI

GTIN4011377069473

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units1

Number of phases1

Number of active contacts (approx.)2

Surface finishFrosted

Ejection mechanismNo

Mounting typeClaw/screw fastening

Color

Residual current protectionNo

Suitable for protection class (IP)IP20

Device width70 mm

Device height70 mm

Halogen freeYes

With loop-through functionNo

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeFlush-mounted

Nominal voltage250V

Rated current16A

Protective contactYes

Protective conductor contact roundYes

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialMetal

Material qualityStainless steel

Overvoltage protectionNo
