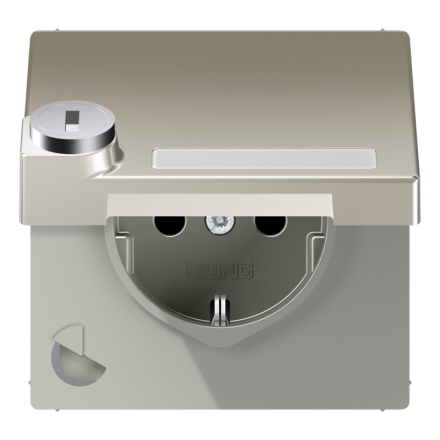

Jung ES1520NAKLSL SCHUKO socket, 16 A 250 V ~, with label field, integrated increased contact protection, SAFETY+, hinged lid, with safety lock, thermoplastic lac

In stock
SKU: 237374
€63.41
Into a basketIn the basketGo

Overview

SCHUKO socket, 16 A 250 V ~, with label field, integrated increased contact protection, SAFETY+, hinged lid, with safety lock, thermoplastic lac SCHUKO® socket, stainless steel
with hinged lid (with return spring)
with label field 9 x 39 mm
with safety lock (24 different closures)
with integrated increased contact protection (Safety Plus)
with spring terminals for rigid and untreated flexible conductors up to 2.5 mm2
Connection terminals in accordance with DIN VDE 0620
Support ring, claws and claw screws are integrated into the protective measure via an earthing rail.
Material: thermoplastic lacquered
Dimensions (W x H): 70 x 70 mm

Property Value
Number of units: 1
Color: Stainless steel
Suitable for protection class (IP): IP44
Rated voltage: 250 V
Rated current: 16 A
Lockable: yes
With increased contact protection: yes
With hinged lid: yes
Mounting type: Flush-mounted
Text field/labeling area: yes
Ejection mechanism: no
Halogen-free: yes
Overvoltage protection: no
Residual current protection: no
Special power supply: without special power supply
Twisted central insert: no
Connection type: Plug-in terminal
With fine fuse: no
Fastening type: Claw/screw fastening
Material: Plastic
Material quality: Thermoplastic
Surface finish: matt
Device width: 70 mm
Device height: 70 mm
With Loop-through function: no
With on/off switch: no
With built-in USB power supply: no
With function lighting: no
With orientation lighting: no
Transparent: no
Protective contact: yes
Round protective conductor contact: no
Number of active contacts (round): 2
With signal lamp: no
Number of phases: 1
Antibacterial treatment: no

Characteristics

Waterproof socketYes
HABES1520NAKLSL
ManufacturerJung
HANES1520NAKLSL
GTIN4011377158122
LockableYes
Connection typePlug-in terminal
Antibacterial treatmentNo
Number of Units1
Number of phases1
Number of active contacts (approx.)2
Surface finishFrosted
Ejection mechanismNo
Mounting typeClaw/screw fastening
Residual current protectionNo
Suitable for protection class (IP)IP44
Device width70 mm
Device height70 mm
Halogen freeYes
With loop-through functionNo
With on/off switchNo
With micro fuseNo
With functional lightingNo
With hinged lidYes
With orientation lightingNo
With signal lampNo
With built-in USB power supplyNo
With increased contact protectionYes
Mounting typeFlush-mounted
Nominal voltage250V
Rated current16A
Protective contactYes
Protective conductor contact roundNo
Special power supplyWithout special power supply
Text field/label areaYes
TransparentNo
Twisted central insertNo
MaterialPlastic
Material qualityThermoplastic
Overvoltage protectionNo
