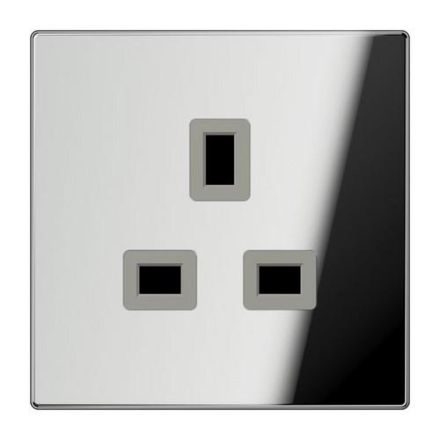

Socket, 13 A 250 V ~, screw terminals BS 1363-1, 4 mm2, without claws, integrated increased contact protection, SAFETY+, chrome-plated metal, LS series, g 2-pin. + E, with integrated increased contact protection
British Standard 1363
with screw terminals for rigid and flexible conductors up to 4 mm2 according to BS 1363-1
Material: chrome-plated metal
| Property | Value |
| Version: | British Standard |
| Number of units: | 1 |
| Color: | Chrome |
| Suitable for protection class (IP): | IP20 |
| Nominal voltage: | 250 V |
| Nominal current: | 13 A |
| Lockable: | no |
| With increased contact protection: | yes |
| With hinged lid: | no |
| Mounting type: | Flush-mounted |
| Text field/labeling area: | no |
| Ejection mechanism: | no |
| Halogen-free: | yes |
| Overvoltage protection: | no |
| Residual current protection: | no |
| Special power supply: | without special power supply |
| Twisted central insert: | no |
| Connection type: | screw terminal |
| With fine fuse: | no |
| Mounting type: | Mounting with screw |
| Material: | metal |
| Material quality: | other |
| Surface finish: | glossy |
| Device width: | 70 mm |
| Device height: | 70 mm |
| With loop-through function: | no |
| With on/off switch: | no |
| With built-in USB power supply: | no |
| With function lighting: | no |
| With orientation lighting: | no |
| Transparent: | no |
| Protective contact: | yes |
| Protective conductor contact round: | yes |
| Number of active contacts (round): | 2 |
| With signal lamp: | no |
| Number of phases: | 1 |
| Antibacterial treatment: | no |
